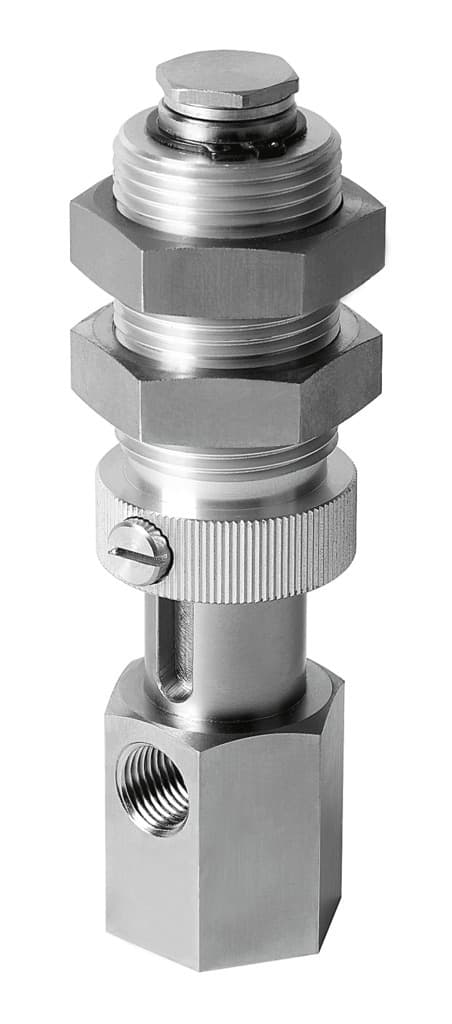

esh-hdl-6-g
Product ID:6582
Updated: 2026/4/3
Key Features
- 1Compensate height with a 40 mm adjuster for precise positioning. 2、Secure mounting using a lock nut and suction cup system. 3、Connect vacuum efficiently via a side G1/4 port. 4、Resist corrosion with CRC 1-rated aluminum, brass, and POM. 5、Apply versatilely in vertical positions per ISO 8573-1.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 40mm | Nominal width | 10mm |
| Volume | 16.968cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 6 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 560g | Type of mounting | With lock nut |
| Suction cup mounting | M20x2 | Vacuum connection | G1/4 |
| Note on materials | RoHS-compliant | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189252 |
Specifications may be subject to change without notice
