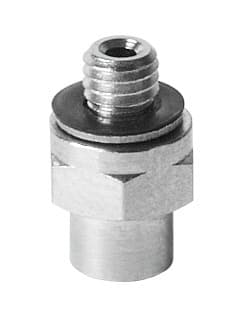

esh-he-1-m3
Product ID:6583
Updated: 2026/7/8
Key Features
- 1Ensure reliable vacuum connections with a top-mounted port for direct screw-in fitting.
- 2Save space using a compact design with 1.2 mm nominal size and 0.04 cm³ volume.
- 3Mount vertically for versatile use across various industrial automation applications.
- 4Reduce corrosion stress with RoHS-compliant wrought aluminum alloy and NBR materials.
- 5Install simply via male thread or vacuum port for quick pneumatic system setup.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 1.2mm | Volume | 0.04cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 1 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 1g |
| Type of mounting | With external thread Via vacuum connection | Suction cup mounting | Diameter 3 mm |
| Vacuum connection | M3 | Note on materials | RoHS-compliant |
| Seals material | Wrought aluminum alloy NBR POM Steel | Retaining bracket material | Tempered steel |
| Manufacturer ID | 189253 |
Specifications may be subject to change without notice
