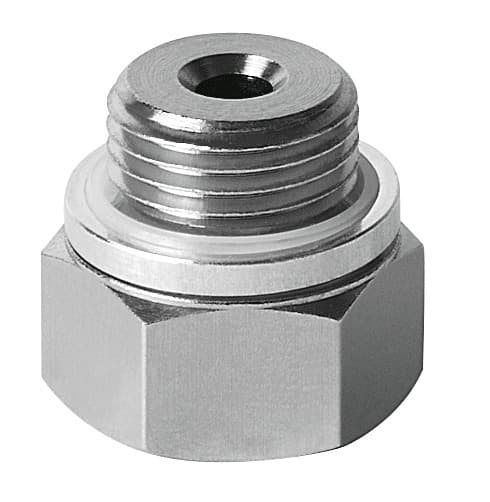

esh-he-3-g1/8
Product ID:6585
Updated: 2026/7/8
Key Features
- 1Utilize a 3 mm nominal size and 0.106 cm³ volume for efficient vacuum use.
- 2Ensure stable operation with the vertical mounting position design.
- 3Apply in low corrosion stress environments with its CRC 1 classification.
- 4Benefit from RoHS-compliant materials including wrought aluminum alloy.
- 5Simplify installation using the external male thread for direct screw-in fitting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 3mm | Volume | 0.106cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 3 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 11g |
| Type of mounting | With external thread Via vacuum connection | Suction cup mounting | M4 |
| Vacuum connection | G1/8 | Note on materials | RoHS-compliant |
| Seals material | Wrought aluminum alloy NBR POM Steel | Retaining bracket material | Tempered steel |
| Manufacturer ID | 189255 |
Specifications may be subject to change without notice
