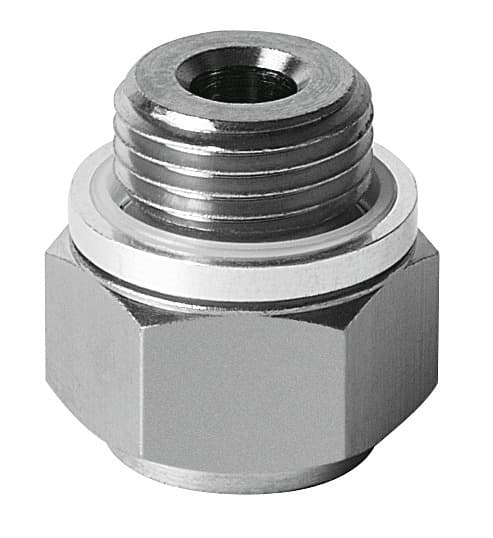

esh-he-4-g1/8
Product ID:6586
Updated: 2026/4/3
Key Features
- 1Feature a top vacuum port for easy and precise suction cup fixation. 2、Secure attachment with M6 suction fastening to various surfaces. 3、Ensure reliable operation with G1/8 vacuum connection compatibility. 4、Utilize materials with low corrosion stress for enhanced durability. 5、Fit compact applications with a 4 mm nominal size design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 4mm | Volume | 0.289cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 4 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 11g |
| Type of mounting | With external thread Via vacuum connection | Suction cup mounting | M6 |
| Vacuum connection | G1/8 | Note on materials | RoHS-compliant |
| Seals material | Wrought aluminum alloy NBR POM Steel | Retaining bracket material | Tempered steel |
| Manufacturer ID | 189256 |
Specifications may be subject to change without notice
