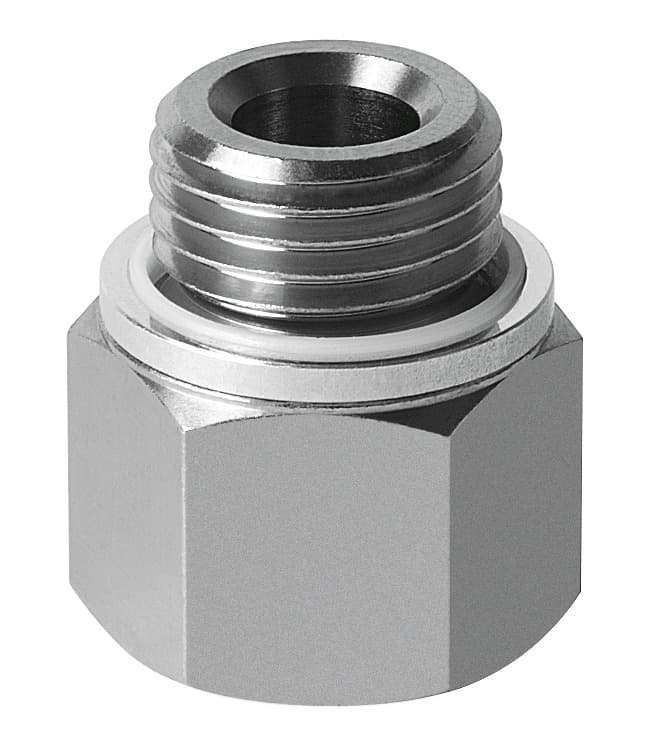

esh-he-5-g1/4
Product ID:6587
Updated: 2026/7/8
Key Features
- 1Secure vacuum connection at the top for reliable mounting.
- 2Meet RoHS compliance with low corrosion stress (CRC 1).
- 3Connect to external threads and M10 suction cups easily.
- 4Operate from -10°C to 60°C for environmental durability.
- 5Handle a lightweight unit weighing only 24 grams.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 7mm | Volume | 1.227cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 5 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 24g |
| Type of mounting | With external thread Via vacuum connection | Suction cup mounting | M10 |
| Vacuum connection | G1/4 | Note on materials | RoHS-compliant |
| Seals material | Wrought aluminum alloy NBR POM Steel | Retaining bracket material | Tempered steel |
| Manufacturer ID | 189257 |
Specifications may be subject to change without notice
