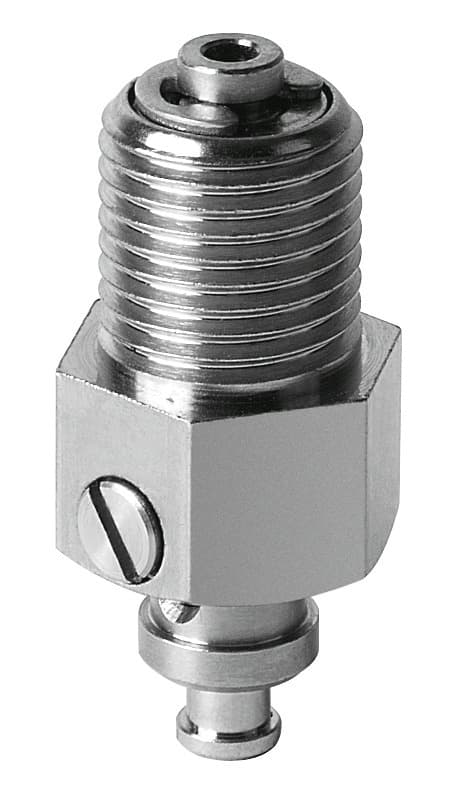

esh-hf-2-m10x1
Product ID:6589
Updated: 2026/7/8
Key Features
- 1Compensate height precisely with a built-in 2.6 mm adjuster.
- 2Mount vertically using the compact M10x1 thread design.
- 3Reduce corrosion stress with CRC Class 1 rated materials.
- 4Operate reliably across a -10°C to 60°C temperature range.
- 5Ensure environmental compliance by meeting RoHS standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 2.6mm | Nominal width | 2mm |
| Volume | 0.09cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 2 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 14g | Type of mounting | With external thread Via vacuum connection |
| Suction cup mounting | Diameter 4 mm | Vacuum connection | M10x1 |
| Note on materials | RoHS-compliant | Seals material | NBR POM |
| Retaining bracket material | Tempered steel | Manufacturer ID | 189261 |
Specifications may be subject to change without notice
