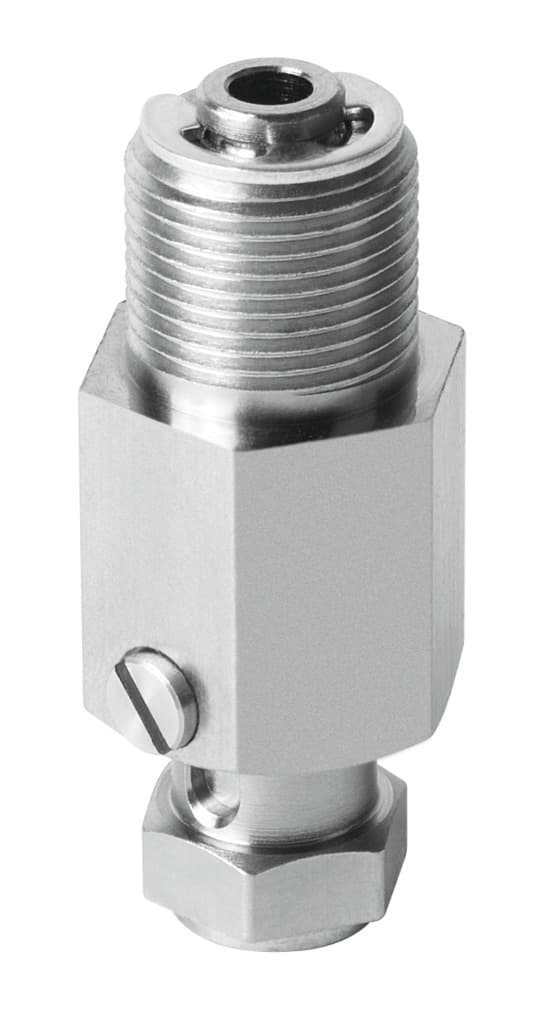

esh-hf-4-m14x1
Product ID:6591
Updated: 2026/7/8
Key Features
- 1Integrate a 6mm height compensator for precise suction-cup alignment.
- 2Mount vertically for stable and secure operation in automation.
- 3Connect easily via the M14x1 threaded pneumatic port.
- 4Resist corrosion with CRC 1 rating for durable performance.
- 5Utilize RoHS-compliant materials like NBR and POM seals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 6mm | Nominal width | 4mm |
| Volume | 0.655cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 4 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 52g | Type of mounting | With external thread Via vacuum connection |
| Suction cup mounting | M6 | Vacuum connection | M14x1 |
| Note on materials | RoHS-compliant | Seals material | NBR POM |
| Retaining bracket material | Tempered steel | Manufacturer ID | 189263 |
Specifications may be subject to change without notice
