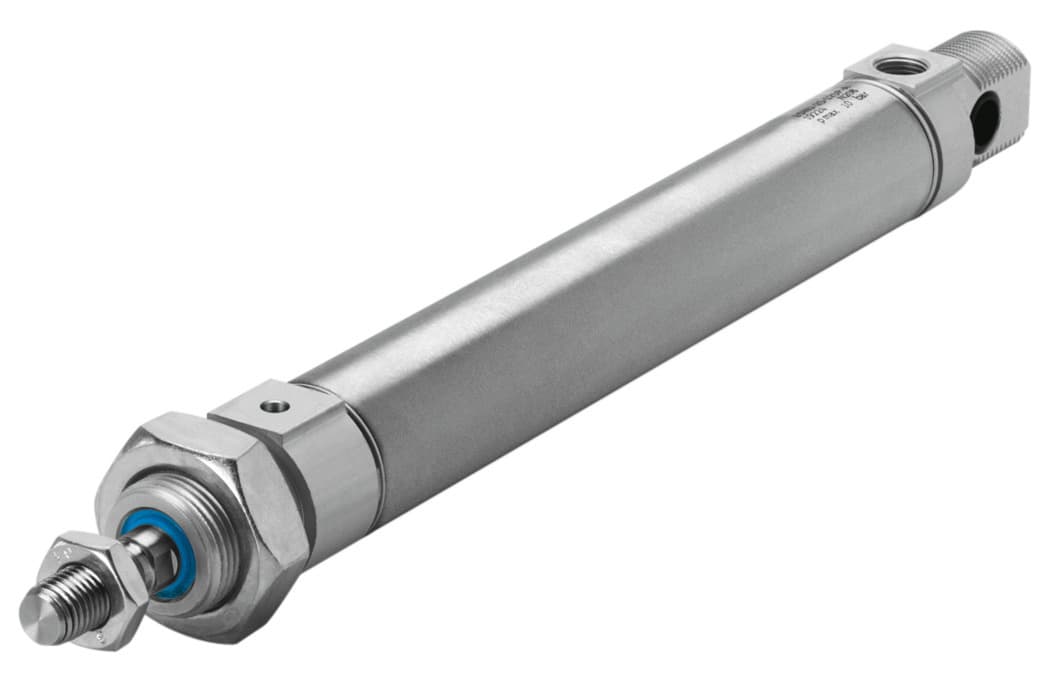

esnu-3/4"- -p-a
Product ID:11596
Updated: 2026/4/3
Key Features
- 1Ensure reliable single-acting, spring-return operation. 2、Reduce noise and vibration with flexible end cushioning. 3、Resist corrosion in normal industrial environments. 4、Operate with lubricated or unlubricated air up to 147 psi. 5、Enable precise control with optional magnetic sensors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 50.8mm | Piston diameter | 3/4" |
| Piston rod thread | 5/16-24 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991729 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Single-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.19998J | Theoretical force at 6 bar, advancing | 169.21N |
| Moving mass at 0?mm stroke | 43.999g | Additional weight per 10?mm stroke | 3.997g |
| Type of mounting | With accessories | Pneumatic connection | 1/8 NPT |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548466 |
Specifications may be subject to change without notice
