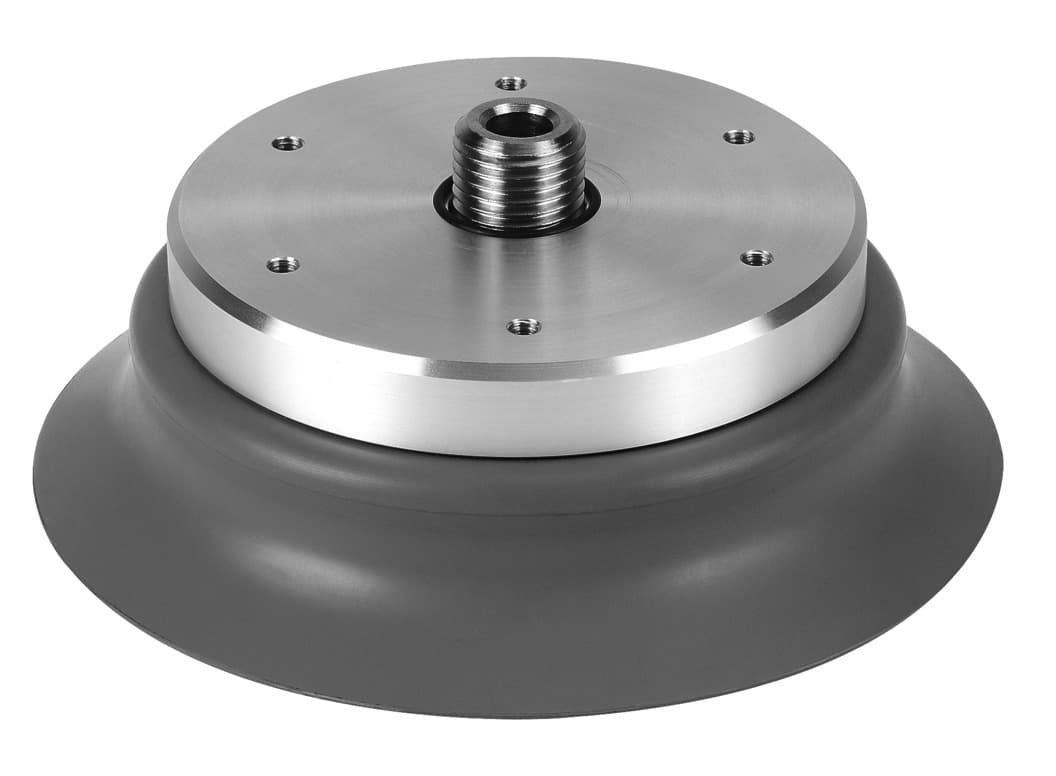

ess-100-ef
Product ID:6693
Updated: 2026/7/4
Key Features
- 1Withstand temperatures up to +200°C for extreme environments.
- 2Construct with durable FPM suction cup and POM trunnion for longevity.
- 3Mount easily via internal thread, external thread, or push-in connector.
- 4Handle oily surfaces reliably due to deep-drawing oil insensitivity.
- 5Meet RoHS standards ensuring environmental and safety compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 200mm | Nominal width | 6mm |
| Suction cup diameter | 100mm | Suction cup volume | 84.66cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 200°C |
| Holding force at nominal operating pressure | 440.8N | Lateral force at nominal operating pressure | 254.5N |
| Product weight | 228g | Type of mounting | Via vacuum connection |
| Vacuum connection | M10 | Color | Gray |
| Shore hardness | 60 +/- 5 | Material of screwed plug | POM Steel, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | FPM |
| Manufacturer ID | 189365 |
Specifications may be subject to change without notice
