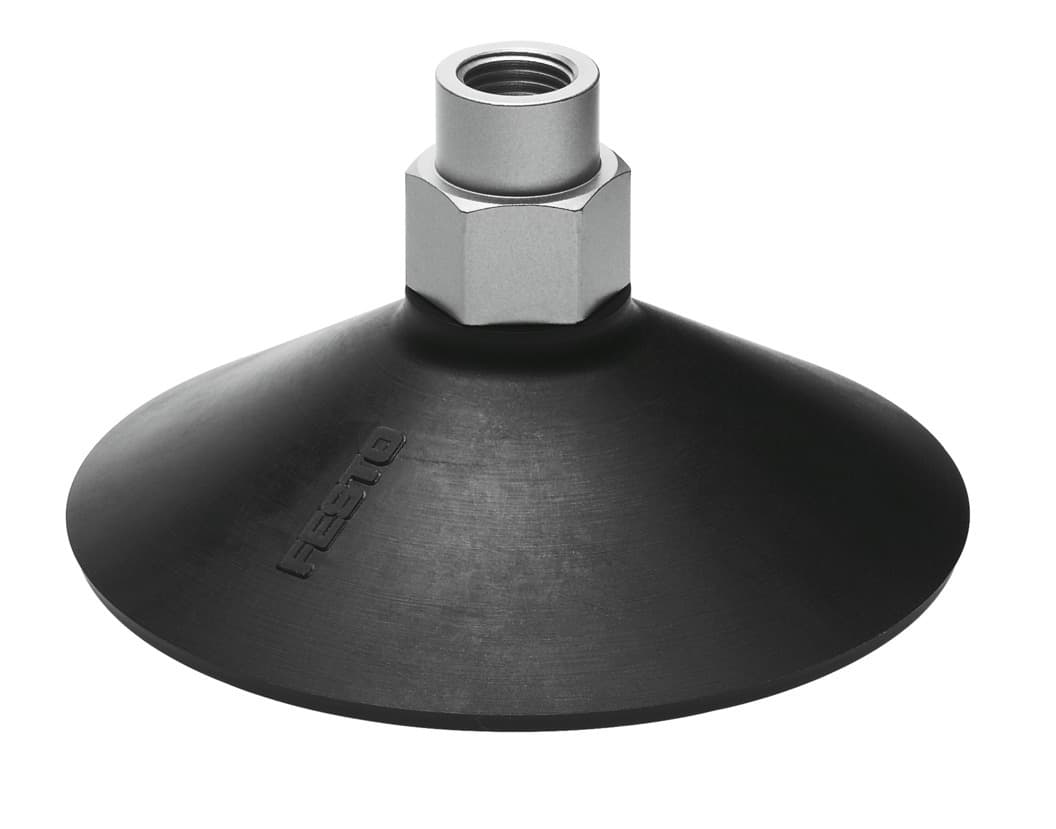

ess-100-gt-g1/4-i
Product ID:8912
Updated: 2026/7/4
Key Features
- 1Compensate height precisely for consistent workpiece handling.
- 2Utilize a 100 mm diameter for versatile industrial applications.
- 3Achieve 297 N breakaway force at 70% vacuum for reliable grip.
- 4Resist moderate corrosion with durable Vulkollan material (CRC 2).
- 5Operate in a wide -10°C to 80°C ambient temperature range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 9mm | Min. workpiece radius | 135mm |
| Nominal width | 5.5mm | Suction cup diameter | 100mm |
| Suction cup volume | 53.9cm3 | Mounting position | Any |
| Structural design | Round, bell-shaped | Symbol | 00991485 |
| Suction cup shape | Round, deep | Operating pressure | -0.95bar 0bar |
| Nominal operating pressure | -0.7bar | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 297N |
| Holding force at nominal operating pressure | 375N | Max. tightening torque for mounting thread | 11Nm |
| Lateral force at nominal operating pressure | 183N | Product weight | 89.5g |
| Type of mounting | Via vacuum connection | Vacuum connection | G1/4 |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Suction cup material | Vulkollan? | Manufacturer ID | 525987 |
Specifications may be subject to change without notice
