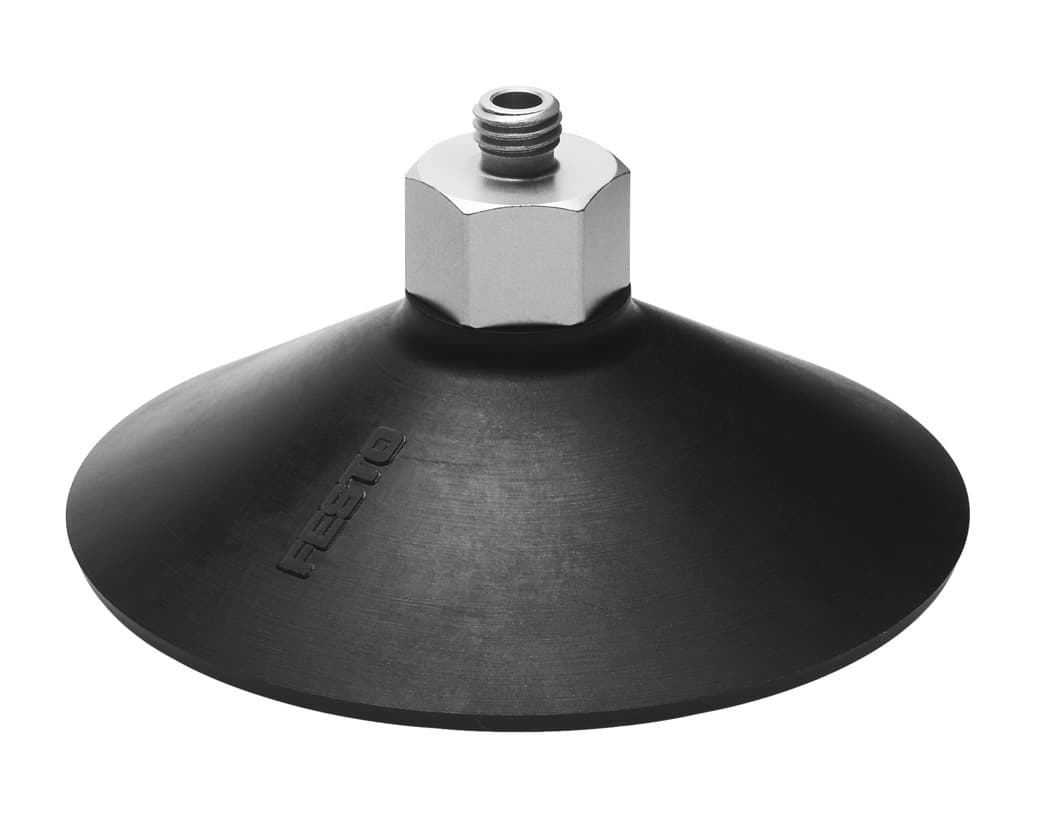

ess-100-gt-m10
Product ID:8911
Updated: 2026/4/3
Key Features
- 1Utilize a 9 mm height compensator for optimal suction cup positioning. 2、Grip securely with a round deep shape for stable workpiece handling. 3、Benefit from CRC 2 corrosion resistance for moderate environmental protection. 4、Operate within a -0.95 to 0 bar pressure range for versatile vacuum use. 5、Construct with durable wrought aluminum and Vulkollan, compliant with RoHS.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 9mm | Min. workpiece radius | 135mm |
| Nominal width | 5.5mm | Suction cup diameter | 100mm |
| Suction cup volume | 53.9cm3 | Mounting position | Any |
| Structural design | Round, bell-shaped | Symbol | 00991485 |
| Classification of suction cup holder | Size 5 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
| Breakaway force at 70% vacuum | 297N | Holding force at nominal operating pressure | 375N |
| Max. tightening torque for mounting thread | 12Nm | Lateral force at nominal operating pressure | 183N |
| Product weight | 86.5g | Type of mounting | Via vacuum connection |
| Vacuum connection | M10 | Color | Reddish brown |
| Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 525986 |
Specifications may be subject to change without notice
