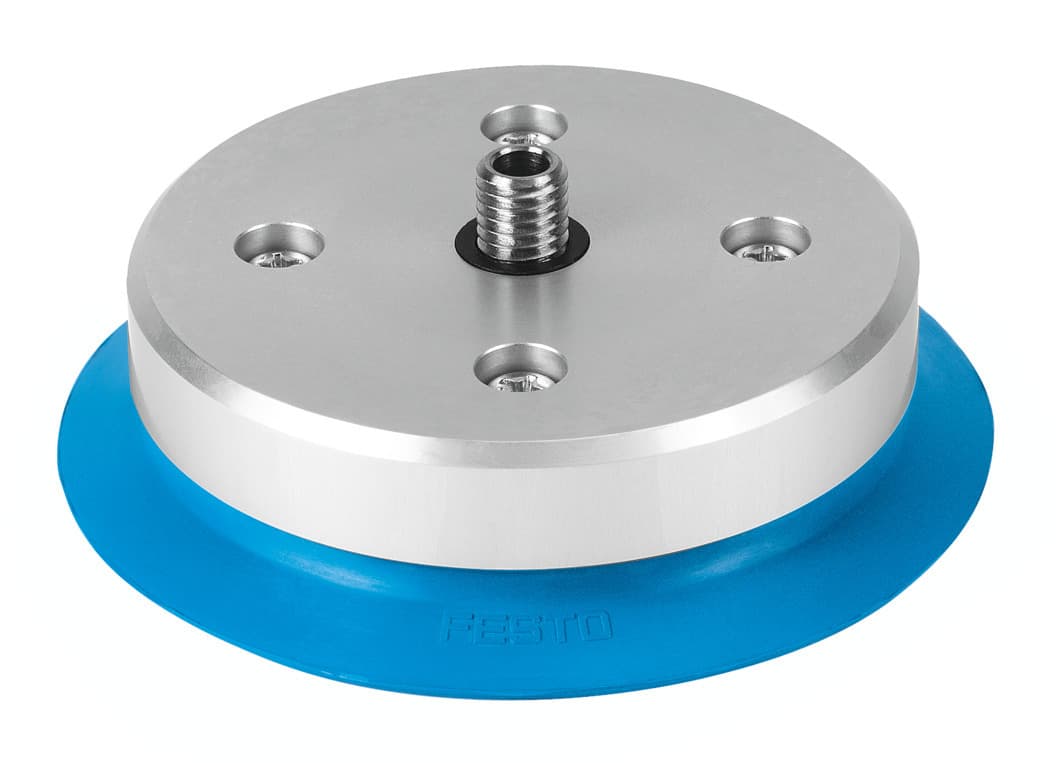

ess-100-su
Product ID:6651
Updated: 2026/7/4
Key Features
- 1Deliver 503.6 N retention force at nominal operating pressure.
- 2Achieve CRC 1 low corrosion stress for food-safe applications.
- 3Connect via M10 vacuum port with optional mounting positions.
- 4Operate reliably from -20°C to 60°C ambient temperature.
- 5Construct from durable PUR material with Shore 60 hardness.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 460mm | Nominal width | 6mm |
| Suction cup diameter | 100mm | Suction cup volume | 29.779cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
| Holding force at nominal operating pressure | 503.6N | Lateral force at nominal operating pressure | 482.5N |
| Product weight | 222g | Type of mounting | Via vacuum connection |
| Vacuum connection | M10 | Color | Blue |
| Shore hardness | 60 +/- 5 | Material of screwed plug | POM Steel, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | PUR |
| Manufacturer ID | 189323 |
Specifications may be subject to change without notice
