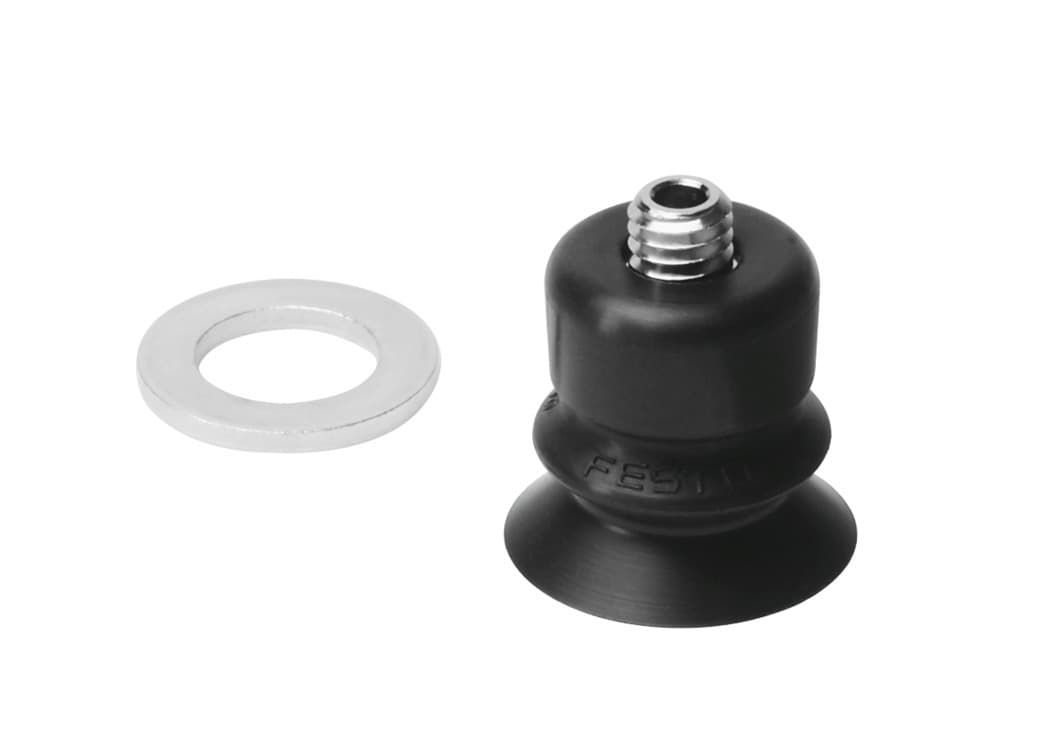

ess-10-bn
Product ID:6694
Updated: 2026/4/3
Key Features
- 1Achieve a compact design with a 10 mm suction cup diameter. 2、Deliver a high holding force of 4.7 N at nominal pressure. 3、Utilize corrosion-resistant material rated CRC 1 for durability. 4、Ensure suitability for food and atmospheric air per ISO 8573-1:2010. 5、Enable easy mounting via an M4 vacuum port connection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 4mm | Min. workpiece radius | 20mm |
| Nominal width | 2mm | Suction cup diameter | 10mm |
| Suction cup volume | 0.38cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 3 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 4.7N |
| Lateral force at nominal operating pressure | 4.5N | Product weight | 1.8g |
| Type of mounting | Via vacuum connection | Vacuum connection | M4 |
| Color | Black | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 189374 |
Specifications may be subject to change without notice
