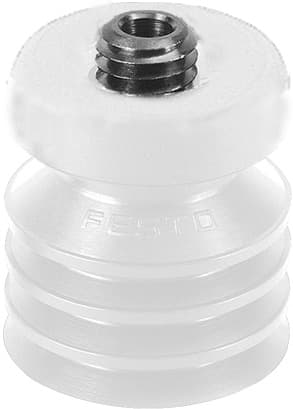

ess-10-cs
Product ID:6713
Updated: 2026/4/3
Key Features
- 1Deliver strong vacuum performance with a nominal operating pressure of -0.7 bar. 2、Ensure durability with corrosion-resistant VMQ (Silicone) material. 3、Handle diverse applications across a wide temperature range from -30°C to 180°C. 4、Achieve precise material handling with a 25 mm minimum workpiece radius. 5、Simplify installation and inspection via a transparent design and M4 connection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 3.3mm | Min. workpiece radius | 25mm |
| Nominal width | 2mm | Suction cup diameter | 10mm |
| Suction cup volume | 0.29cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 3 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 3.9N |
| Lateral force at nominal operating pressure | 1N | Product weight | 1.6g |
| Type of mounting | Via vacuum connection | Vacuum connection | M4 |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 189399 |
