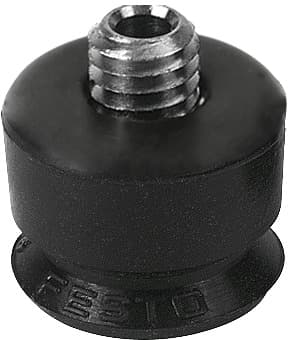

ess-10-sna
Product ID:6616
Updated: 2026/7/4
Key Features
- 1Ensure robust performance with high tear and abrasion resistance.
- 2Handle versatile applications across food, metal, and antistatic needs.
- 3Simplify mounting via M4 vacuum connection for quick setup.
- 4Achieve a 3.9 N holding force and 7.5 N lateral force.
- 5Meet RoHS and VDMA standards for low corrosion stress.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 30mm | Nominal width | 2mm |
| Suction cup diameter | 10mm | Suction cup volume | 0.05cm3 |
| Connection position | Top | Mounting position | Any |
| Special features | Anti-static | Symbol | 00991485 |
| Classification of suction cup holder | Size 3 | Suction cup shape | Round, flat |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Surface resistance | 2.0E-4MOhm | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
| Holding force at nominal operating pressure | 3.9N | Lateral force at nominal operating pressure | 7.5N |
| Product weight | 1.5g | Type of mounting | Via vacuum connection |
| Vacuum connection | M4 | Color | Black/white dot |
| Shore hardness | 50 +/- 5 | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Suction cup material | NBR |
| Manufacturer ID | 189288 |
Specifications may be subject to change without notice
