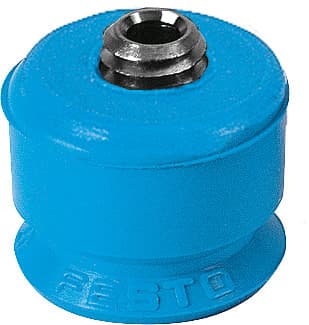

ess-15-su
Product ID:6618
Updated: 2026/7/4
Key Features
- 1Achieve a secure 8.5N holding force for reliable gripping.
- 2Utilize durable PUR material for extended service life.
- 3Mount easily with a flat, compact 15mm pad design.
- 4Deploy in diverse vacuum applications including food handling.
- 5Reduce downtime with a robust design built for demanding cycles.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 35mm | Nominal width | 2mm |
| Suction cup diameter | 15mm | Suction cup volume | 0.208cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 3 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
| Holding force at nominal operating pressure | 8.5N | Lateral force at nominal operating pressure | 9N |
| Product weight | 1.9g | Type of mounting | Via vacuum connection |
| Vacuum connection | M4 | Color | Blue |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Suction cup material | PUR |
| Manufacturer ID | 189290 |
Specifications may be subject to change without notice
