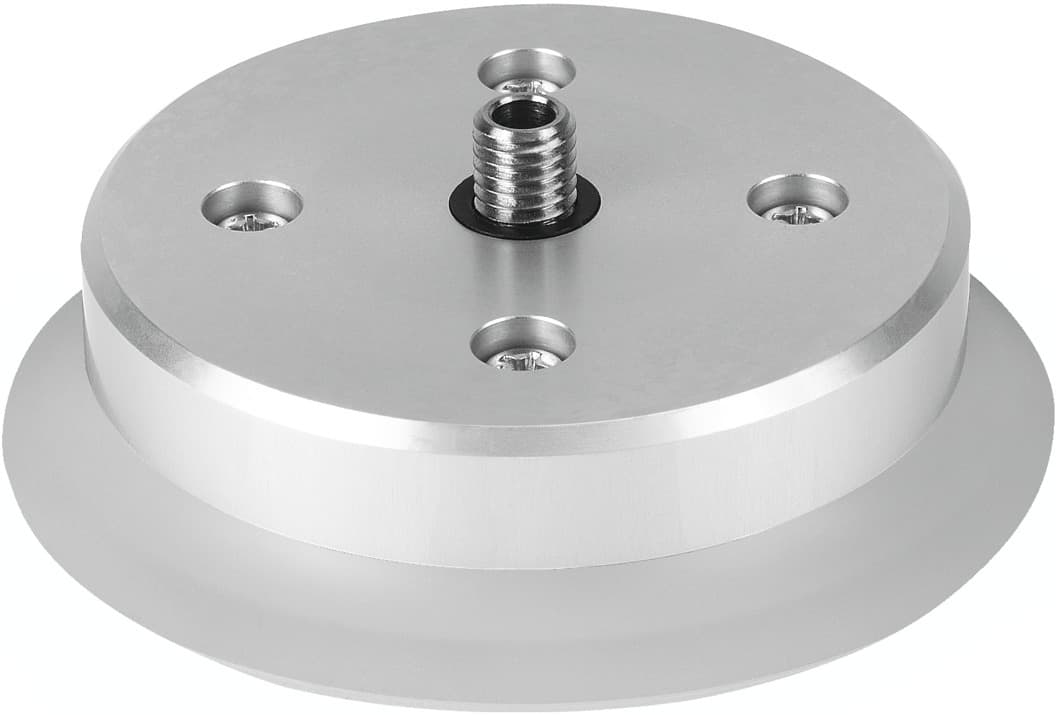

ess-200-ss
Product ID:6660
Updated: 2026/4/3
Key Features
- 1Deliver a high 1610 N nominal holding force for secure workpiece grip. 2、Resist corrosion with CRC 1 rating for harsh environment use. 3、Ensure food safety with LABS (PWIS) and VDMA24364 Zone III conformity. 4、Mount in any position via vacuum connection for versatile setup. 5、Construct from durable, transparent VMQ silicone for easy inspection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 680mm | Nominal width | 10mm |
| Suction cup diameter | 200mm | Suction cup volume | 245.454cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 6 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
| Holding force at nominal operating pressure | 1610N | Lateral force at nominal operating pressure | 425N |
| Product weight | 1198g | Type of mounting | Via vacuum connection |
| Vacuum connection | M20x2 | Color | Transparent |
| Shore hardness | 50 +/- 5 | Material of screwed plug | NBR Steel, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 189332 |
Specifications may be subject to change without notice
