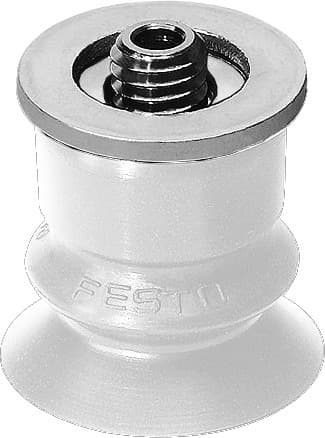

ess-20-bs
Product ID:6699
Updated: 2026/7/4
Key Features
- 1Deliver 12.9 N holding force for reliable grip.
- 2Construct with durable, food-safe silicone (VMQ) material.
- 3Feature a compact 20mm design for precise operations.
- 4Operate effectively from -30°C to 180°C.
- 5Enable easy mounting via the M6 vacuum connection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 6mm | Min. workpiece radius | 40mm |
| Nominal width | 3mm | Suction cup diameter | 20mm |
| Suction cup volume | 1.6cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 12.9N |
| Lateral force at nominal operating pressure | 8N | Product weight | 6.7g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 189380 |
Specifications may be subject to change without notice
