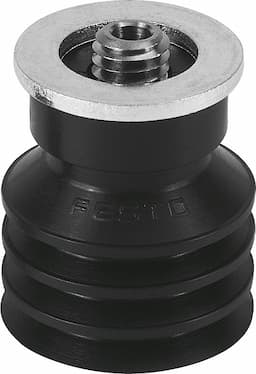

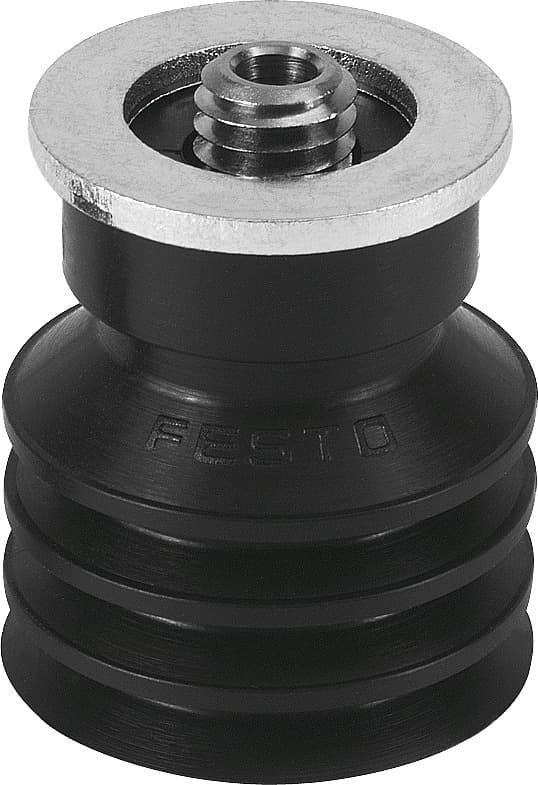

ess-20-cn
Product ID:6714
Updated: 2026/4/3
Key Features
- 1Achieve precise handling with 7 mm height compensation. 2、Ensure food safety with ISO 8573-1:2010 compliance. 3、Secure reliable vacuum connections via the M6 port. 4、Build durability with nickel-plated brass and steel. 5、Fit compact spaces with a 20 mm diameter design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 7mm | Min. workpiece radius | 50mm |
| Nominal width | 3mm | Suction cup diameter | 20mm |
| Suction cup volume | 2.75cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 8.2N |
| Lateral force at nominal operating pressure | 6.5N | Product weight | 6.9g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Black | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 189400 |
Specifications may be subject to change without notice
