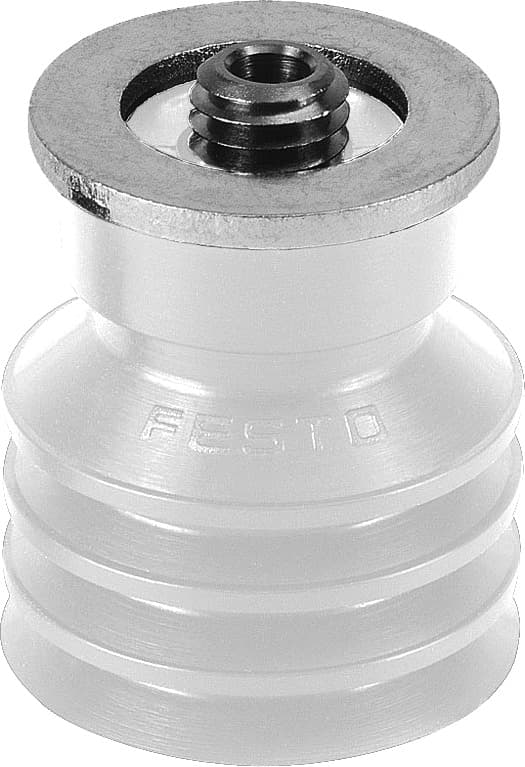

ess-20-cs
Product ID:6715
Updated: 2026/7/4
Key Features
- 1Achieve precise handling with a 20mm bellows design.
- 2Ensure high corrosion resistance using VMQ silicone material.
- 3Meet food industry cleanliness and safety standards.
- 4Gain flexible mounting via an M6 vacuum port.
- 5Integrate easily with a compact, 6.9-gram design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 7mm | Min. workpiece radius | 50mm |
| Nominal width | 3mm | Suction cup diameter | 20mm |
| Suction cup volume | 2.75cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 8.2N |
| Lateral force at nominal operating pressure | 7N | Product weight | 6.9g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 189401 |
Specifications may be subject to change without notice
