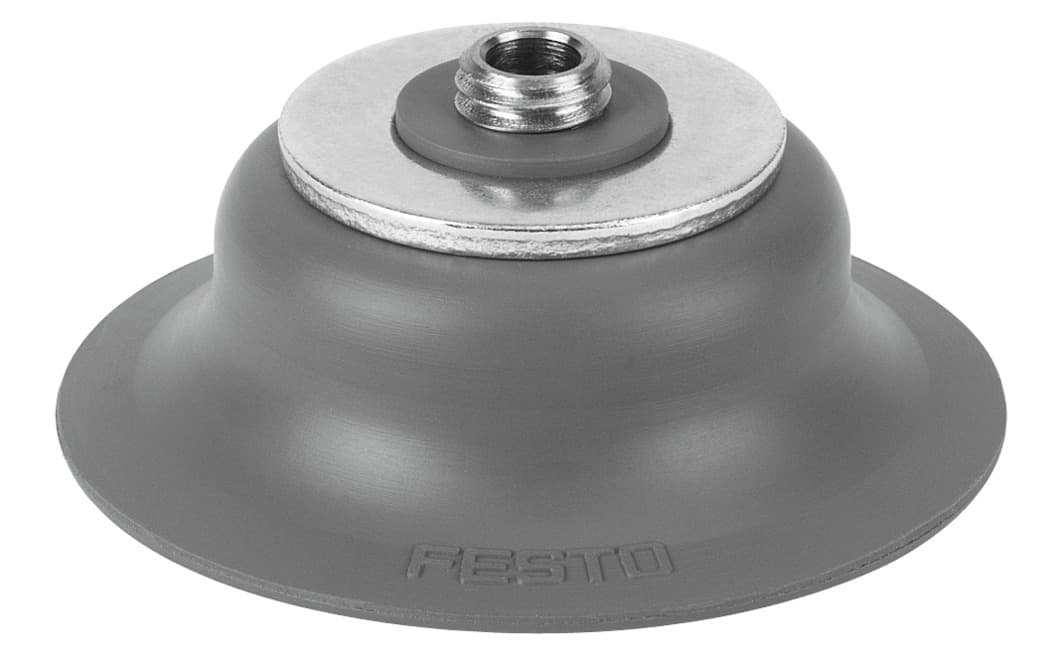

ess-20-sf
Product ID:6625
Updated: 2026/7/4
Key Features
- 1Deliver a high holding force of 16.30 N for reliable grip.
- 2Install in any position for versatile application use.
- 3Resist corrosion with nickel-plated brass construction.
- 4Operate across a wide -10°C to 200°C temperature range.
- 5Utilize a compact 20mm design for powerful performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 60mm | Nominal width | 3mm |
| Suction cup diameter | 20mm | Suction cup volume | 0.318cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 4 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 200°C |
| Holding force at nominal operating pressure | 16.3N | Lateral force at nominal operating pressure | 15.5N |
| Product weight | 6.4g | Type of mounting | Via vacuum connection |
| Vacuum connection | M6 | Color | Gray |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | FPM |
| Manufacturer ID | 189297 |
Specifications may be subject to change without notice
