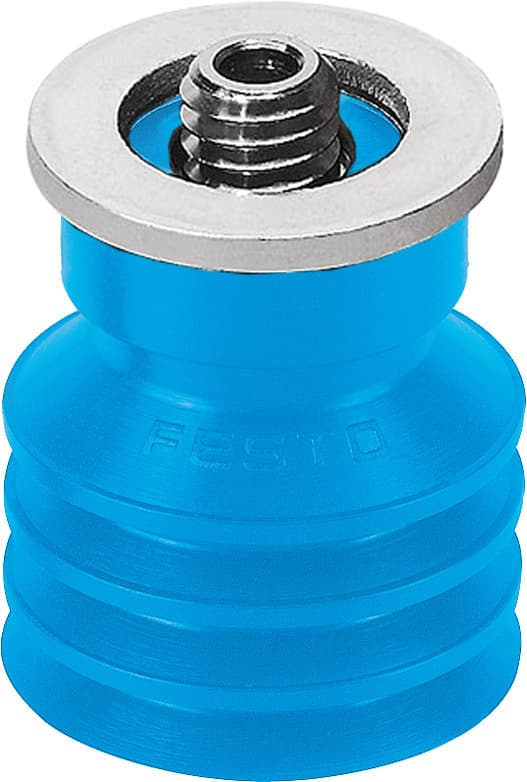

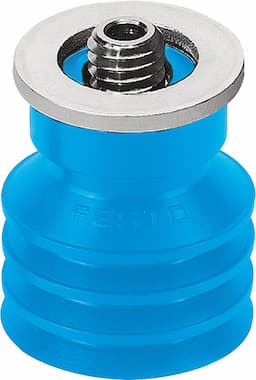

ess-30-bu
Product ID:6701
Updated: 2026/4/3
Key Features
- 1Weighs only 9.9 grams for easy handling. 2、Mount via vacuum port for flexible installation. 3、Provides 26.2 N nominal holding force. 4、Complies with RoHS and LABS standards for durability. 5、Suitable for food use per ISO 8573-1:2010.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 8mm | Min. workpiece radius | 80mm |
| Nominal width | 3mm | Suction cup diameter | 30mm |
| Suction cup volume | 4.07cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 26.2N |
| Lateral force at nominal operating pressure | 21.5N | Product weight | 9.9g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Blue | Shore hardness | 60 +/- 5 |
| Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | PUR | Manufacturer ID | 189383 |
Specifications may be subject to change without notice
