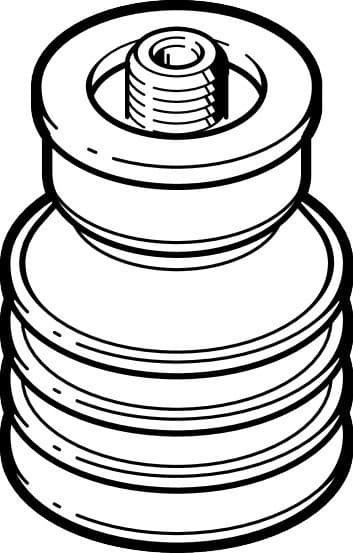

ess-30-cs
Product ID:6717
Updated: 2026/4/3
Key Features
- 1Handle workpieces precisely with a round bellows design featuring 3.5 convolutions. 2、Mount easily via vacuum connection for any installation position. 3、Reduce corrosion stress with a CRC 1 classification for various environments. 4、Meet stringent cleanliness standards for use in the food industry. 5、Operate effectively in ambient temperatures from -30°C to 180°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 10.5mm | Min. workpiece radius | 80mm |
| Nominal width | 3mm | Suction cup diameter | 30mm |
| Suction cup volume | 9.47cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 20.8N |
| Lateral force at nominal operating pressure | 11N | Product weight | 12.2g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 189403 |
