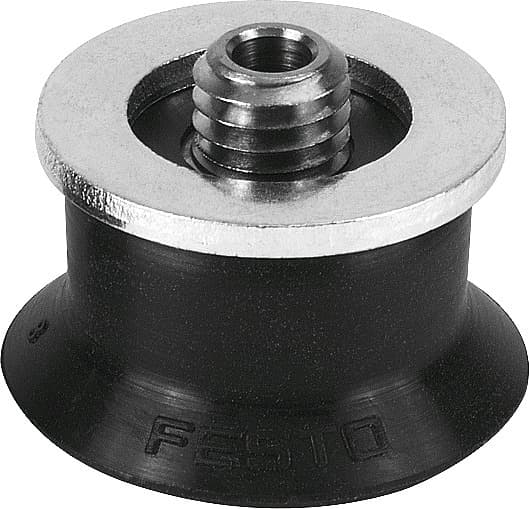

ess-30-en
Product ID:6670
Updated: 2026/7/4
Key Features
- 1Deliver 37.2 N holding force at nominal operating pressure.
- 2Achieve CRC 1 rating for low corrosion and food suitability.
- 3Feature a 30 mm diameter and 2.12 cm³ volume.
- 4Connect via M6 vacuum port with optional top mounting.
- 5Utilize nickel-plated brass and NBR material, RoHS-compliant.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 50mm | Nominal width | 3mm |
| Suction cup diameter | 30mm | Suction cup volume | 2.12cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 4 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
| Holding force at nominal operating pressure | 37.2N | Lateral force at nominal operating pressure | 24.5N |
| Product weight | 9.2g | Type of mounting | Via vacuum connection |
| Vacuum connection | M6 | Color | Black |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | NBR |
| Manufacturer ID | 189342 |
Specifications may be subject to change without notice
