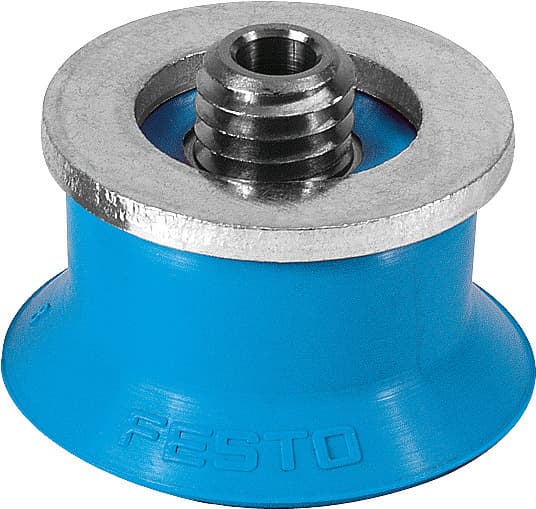

ess-30-eu
Product ID:6671
Updated: 2026/4/3
Key Features
- 1Achieve precise vacuum mounting with a round, extra deep suction cup design. 2、Ensure reliable performance in various environments with low corrosion resistance (CRC 1). 3、Comply with food safety standards using this food-safe suction cup. 4、Operate within -95 kPa to 0 kPa using atmospheric air per ISO 8573-1:2010. 5、Handle easily with a compact design weighing only 9.2 grams.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 50mm | Nominal width | 3mm |
| Suction cup diameter | 30mm | Suction cup volume | 2.12cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 4 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
| Holding force at nominal operating pressure | 37.2N | Lateral force at nominal operating pressure | 41.5N |
| Product weight | 9.2g | Type of mounting | Via vacuum connection |
| Vacuum connection | M6 | Color | Blue |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | PUR |
| Manufacturer ID | 189343 |
Specifications may be subject to change without notice
