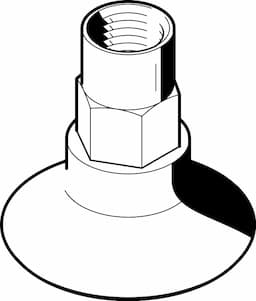

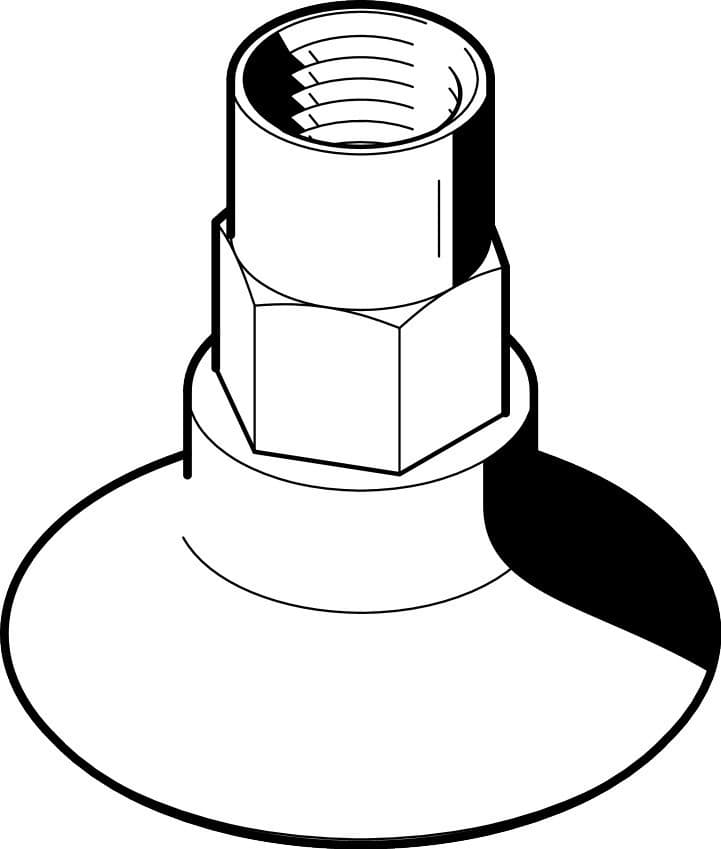

ess-30-gt-g1/8-i
Product ID:8895
Updated: 2026/4/3
Key Features
- 1Grip workpieces securely with a round deep suction cup design. 2、Ensure durability using a polyurethane cup and wrought aluminum alloy trunnion. 3、Integrate easily with a 1/8" BSPP or G1/8" threaded pneumatic port. 4、Operate reliably in ambient temperatures from -10°C to +80°C. 5、Handle moderate-corrosion stress with CRC Class 2 resistance and height compensation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 3.5mm | Min. workpiece radius | 26mm |
| Nominal width | 2.5mm | Suction cup diameter | 30mm |
| Suction cup volume | 2.4cm3 | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
| Holding force at nominal operating pressure | 36N | Lateral force at nominal operating pressure | 13N |
| Product weight | 14g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/8 | Color | Reddish brown |
| Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 525970 |
Specifications may be subject to change without notice
