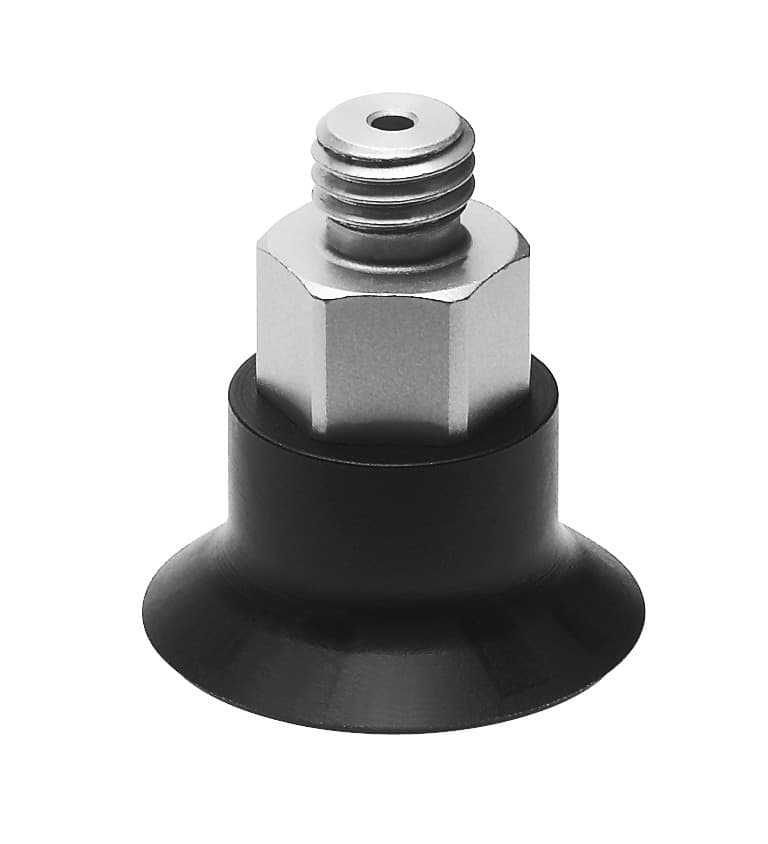

ess-30-gt-m10
Product ID:8894
Updated: 2026/4/3
Key Features
- 1Feature a height compensator for easy interchangeability and precise fitting. 2、Deliver a 36N holding force with a 30mm diameter suction cup. 3、Operate reliably from -10°C to 80°C under ISO 8573-1:2010 standards. 4、Construct from durable Vulkollan material for corrosion resistance. 5、Enable flexible mounting via vacuum connection in any position.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 3.5mm | Min. workpiece radius | 26mm |
| Nominal width | 2.5mm | Suction cup diameter | 30mm |
| Suction cup volume | 2.4cm3 | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, deep | Operating pressure | -0.95bar 0bar |
| Nominal operating pressure | -0.7bar | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Holding force at nominal operating pressure | 36N |
| Lateral force at nominal operating pressure | 13N | Product weight | 13g |
| Type of mounting | Via vacuum connection | Vacuum connection | M10 |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Suction cup material | Vulkollan? | Manufacturer ID | 525969 |
Specifications may be subject to change without notice
