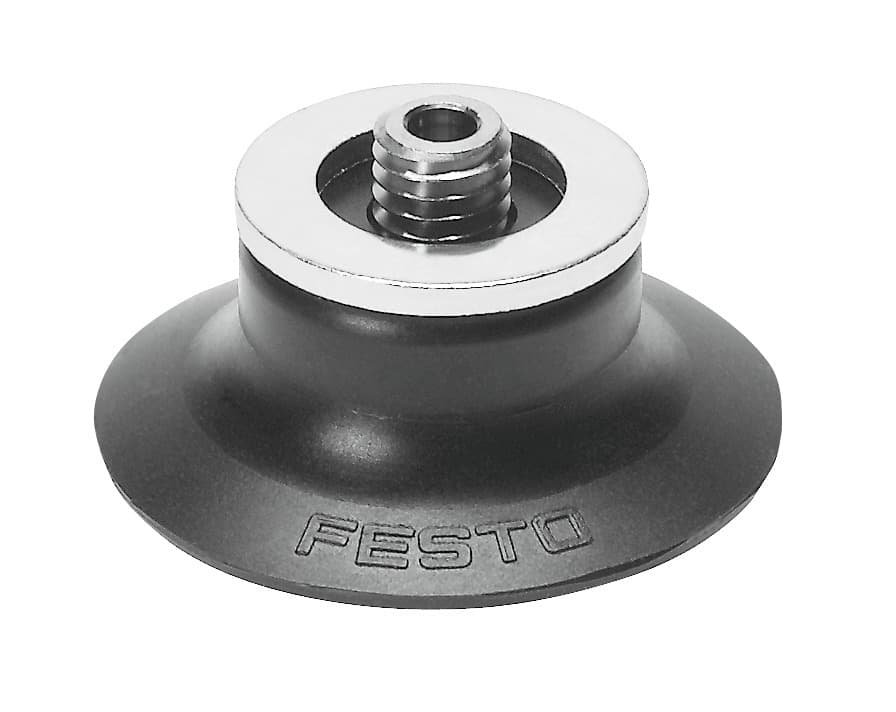

ess-30-sna
Product ID:6631
Updated: 2026/4/3
Key Features
- 1Prevent static buildup with antistatic Nitrile rubber material. 2、Achieve a secure 40.8 N holding force for reliable grip. 3、Ensure durability with nickel-plated brass and galvanized steel construction. 4、Mount flexibly in any position for food industry use. 5、Reduce corrosion stress with a CRC 1 classification.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 110mm | Nominal width | 3mm |
| Suction cup diameter | 30mm | Suction cup volume | 0.867cm3 |
| Connection position | Top | Mounting position | Any |
| Special features | Anti-static | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round, flat |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Surface resistance | 2.0E-4MOhm | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
| Holding force at nominal operating pressure | 40.8N | Lateral force at nominal operating pressure | 20N |
| Product weight | 9g | Type of mounting | Via vacuum connection |
| Vacuum connection | M6 | Color | Black/white dot |
| Shore hardness | 50 +/- 5 | Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | NBR |
| Manufacturer ID | 189303 |
Specifications may be subject to change without notice
