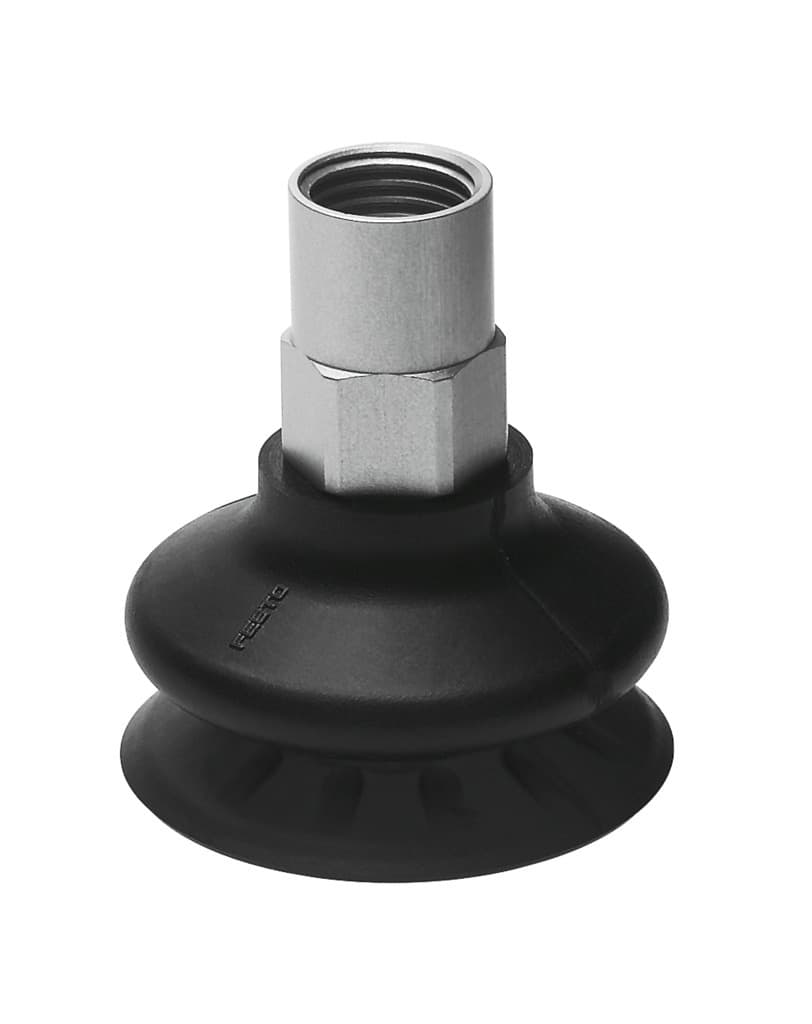

ess-40-bt-g1/4-i
Product ID:8916
Updated: 2026/4/3
Key Features
- 1Deliver a robust 59 N holding force for secure workpiece handling. 2、Mount in any position to maximize application flexibility. 3、Withstand moderate corrosion stress with CRC 2 resistance. 4、Operate reliably across -0.95 to 0 bar vacuum pressure. 5、Utilize durable Vulkollan® material for long-lasting elasticity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 9mm | Min. workpiece radius | 35mm |
| Nominal width | 2.5mm | Suction cup diameter | 40mm |
| Suction cup volume | 9.8cm3 | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
| Holding force at nominal operating pressure | 59N | Lateral force at nominal operating pressure | 22N |
| Product weight | 19g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Reddish brown |
| Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 525991 |
Specifications may be subject to change without notice
