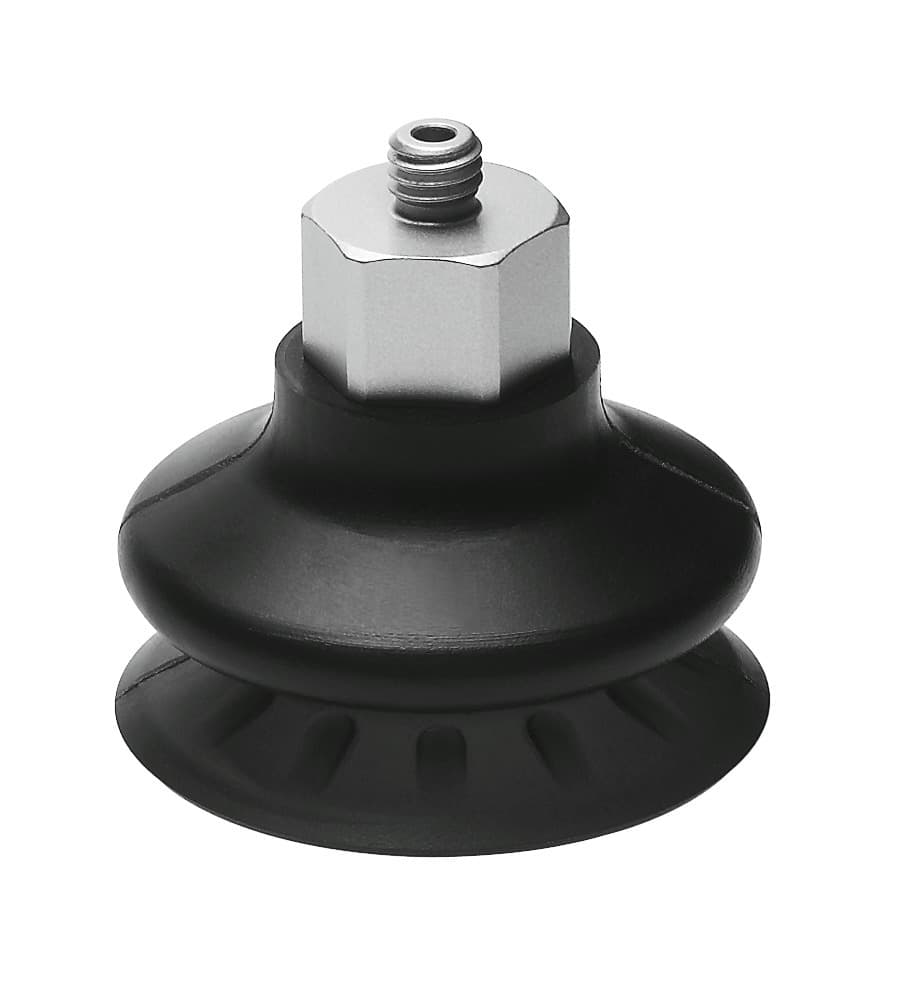

ess-40-bt-m6
Product ID:8914
Updated: 2026/4/3
Key Features
- 1Feature a 40mm bellows design with 1.5 convolutions for strong vacuum. 2、Offer easy interchangeability with a 9mm height compensator. 3、Operate from -10°C to 80°C with moderate corrosion resistance. 4、Provide 59 N holding force and 22 N shear force for reliability. 5、Construct from durable Vulkollan, compliant with RoHS standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 9mm | Min. workpiece radius | 35mm |
| Nominal width | 2.5mm | Suction cup diameter | 40mm |
| Suction cup volume | 9.8cm3 | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 4 |
| Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -0.95bar 0bar |
| Nominal operating pressure | -0.7bar | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Holding force at nominal operating pressure | 59N |
| Lateral force at nominal operating pressure | 22N | Product weight | 18g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Suction cup material | Vulkollan? | Manufacturer ID | 525989 |
Specifications may be subject to change without notice
