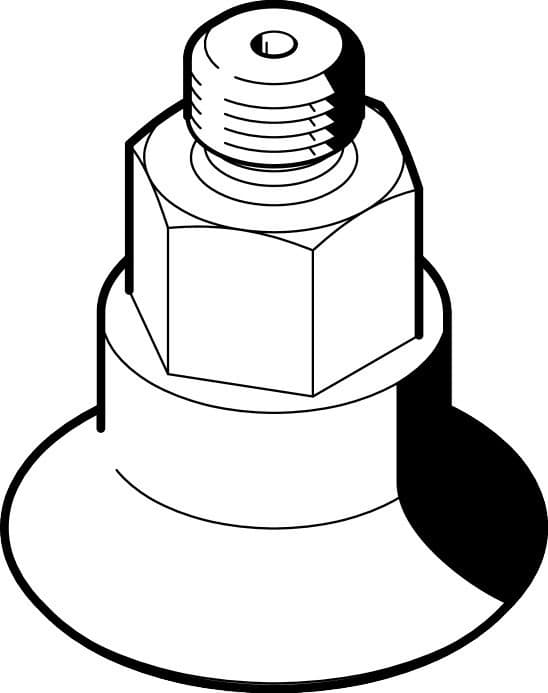

ess-40-gt-m6
Product ID:8897
Updated: 2026/4/3
Key Features
- 1Deliver a high holding force of 64 N for secure vacuum operations. 2、Operate effectively across a wide -10°C to 80°C temperature range. 3、Withstand moderate corrosion stress with CRC 2 resistance for durability. 4、Feature a compact 5.5 mm height and 40 mm diameter for easy integration. 5、Mount flexibly via the vacuum port for versatile application and installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 5.5mm | Min. workpiece radius | 35mm |
| Nominal width | 2.5mm | Suction cup diameter | 40mm |
| Suction cup volume | 5.4cm3 | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 4 |
| Suction cup shape | Round, deep | Operating pressure | -0.95bar 0bar |
| Nominal operating pressure | -0.7bar | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Holding force at nominal operating pressure | 64N |
| Lateral force at nominal operating pressure | 20N | Product weight | 14g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Suction cup material | Vulkollan? | Manufacturer ID | 525972 |
Specifications may be subject to change without notice
