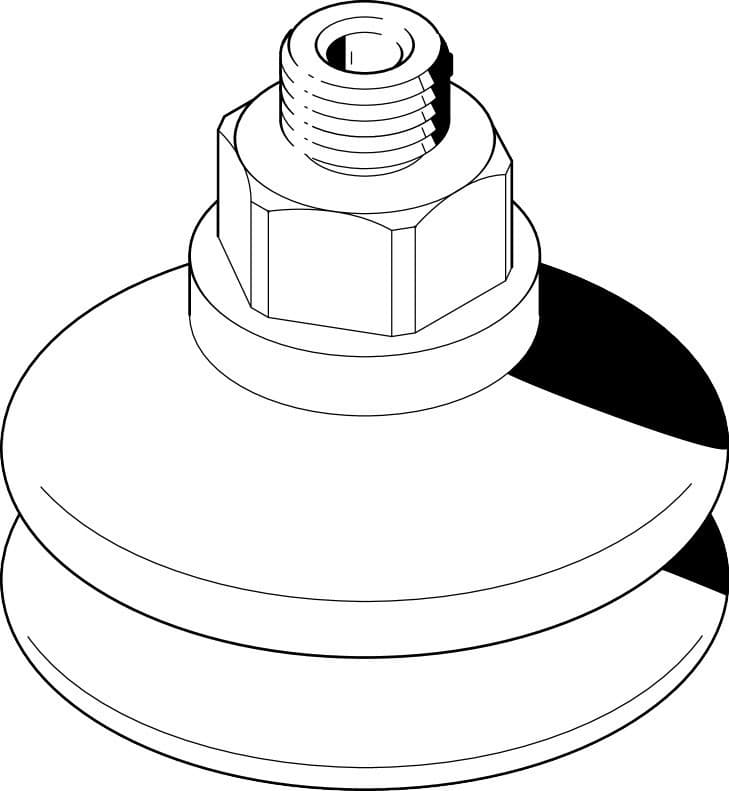

ess-50-bt-m6
Product ID:8918
Updated: 2026/4/3
Key Features
- 1Ensure stable grip with a 10 mm height compensator. 2、Provide 100 N holding force for secure attachment. 3、Feature moderate CRC 2 corrosion resistance. 4、Operate reliably from -10 °C to 80 °C. 5、Offer a 50 mm diameter for versatile applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 10mm | Min. workpiece radius | 40mm |
| Nominal width | 2.5mm | Suction cup diameter | 50mm |
| Suction cup volume | 17.6cm3 | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 4 |
| Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -0.95bar 0bar |
| Nominal operating pressure | -0.7bar | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Holding force at nominal operating pressure | 100N |
| Lateral force at nominal operating pressure | 39N | Product weight | 24g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Suction cup material | Vulkollan? | Manufacturer ID | 525993 |
Specifications may be subject to change without notice
