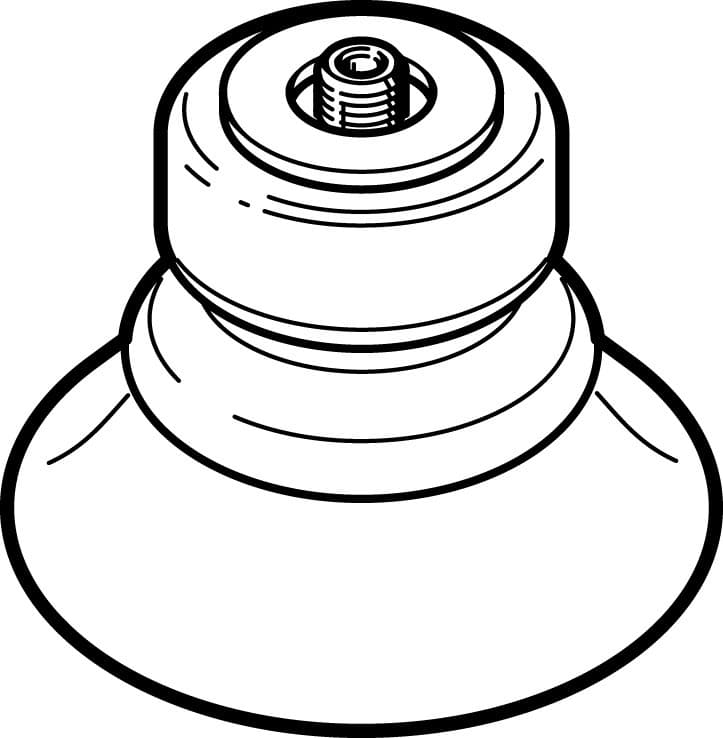

ess-50-bu
Product ID:6707
Updated: 2026/7/4
Key Features
- 1Ensure versatile application with easy interchangeability.
- 2Achieve precise control using the 11 mm height compensator.
- 3Handle workpieces with a minimum radius of 150 mm.
- 4Resist low corrosion stress (CRC 1) for durability.
- 5Operate reliably within 0 to 0.95 bar pressure range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 11mm | Min. workpiece radius | 150mm |
| Nominal width | 3mm | Suction cup diameter | 50mm |
| Suction cup volume | 14.23cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 72.6N |
| Lateral force at nominal operating pressure | 47N | Product weight | 24.7g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Blue | Shore hardness | 60 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | PUR | Manufacturer ID | 189391 |
Specifications may be subject to change without notice
