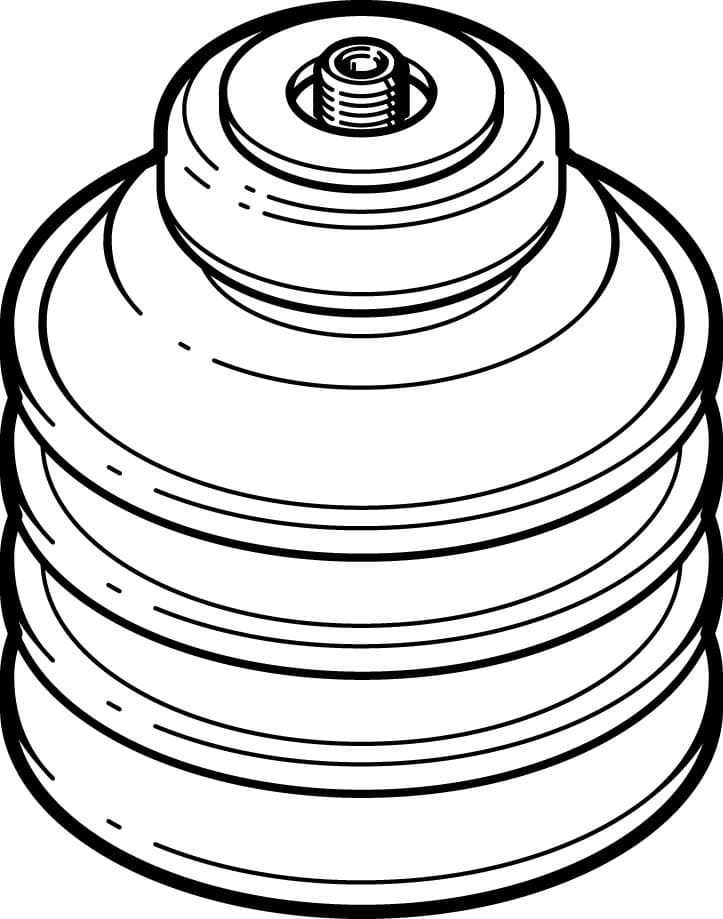

ess-50-cs
Product ID:6721
Updated: 2026/7/4
Key Features
- 1Utilize a 50mm diameter with 3.5 convolutions for efficient vacuum suction.
- 2Employ standard Silicone material for durability and corrosion resistance.
- 3Connect easily via the M6 threaded connection for secure mounting.
- 4Position precisely with the 17.5MM height compensator.
- 5Achieve 63.4N holding force for reliable grip and stability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 17.5mm | Min. workpiece radius | 180mm |
| Nominal width | 3mm | Suction cup diameter | 50mm |
| Suction cup volume | 38.92cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 63.4N |
| Lateral force at nominal operating pressure | 45.5N | Product weight | 32.1g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 189407 |
Specifications may be subject to change without notice
