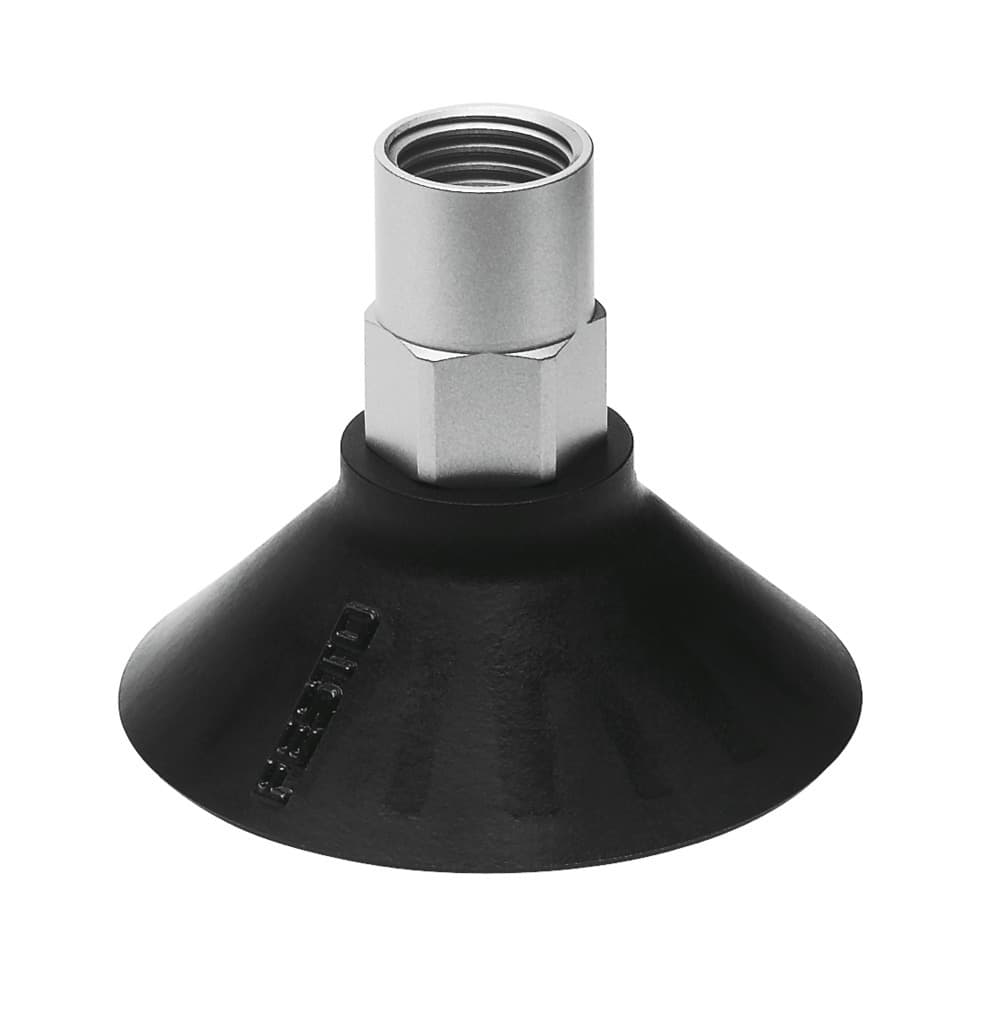

ess-50-gt-g1/4-i
Product ID:8903
Updated: 2026/4/3
Key Features
- 1Provide 8 mm height compensation for stable performance from 40 mm radii. 2、Feature a 50 mm diameter for large, effective vacuum gripping surface. 3、Operate from -0.95 to 0 bar with -0.7 bar nominal pressure. 4、Construct with Vulkollan for CRC 2 corrosion and -10°C to 80°C tolerance. 5、Deliver 97 N retention and 30 N lateral force for secure gripping.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 8mm | Min. workpiece radius | 40mm |
| Nominal width | 2.5mm | Suction cup diameter | 50mm |
| Suction cup volume | 11.2cm3 | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
| Holding force at nominal operating pressure | 97N | Lateral force at nominal operating pressure | 30N |
| Product weight | 18g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Reddish brown |
| Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 525978 |
Specifications may be subject to change without notice
