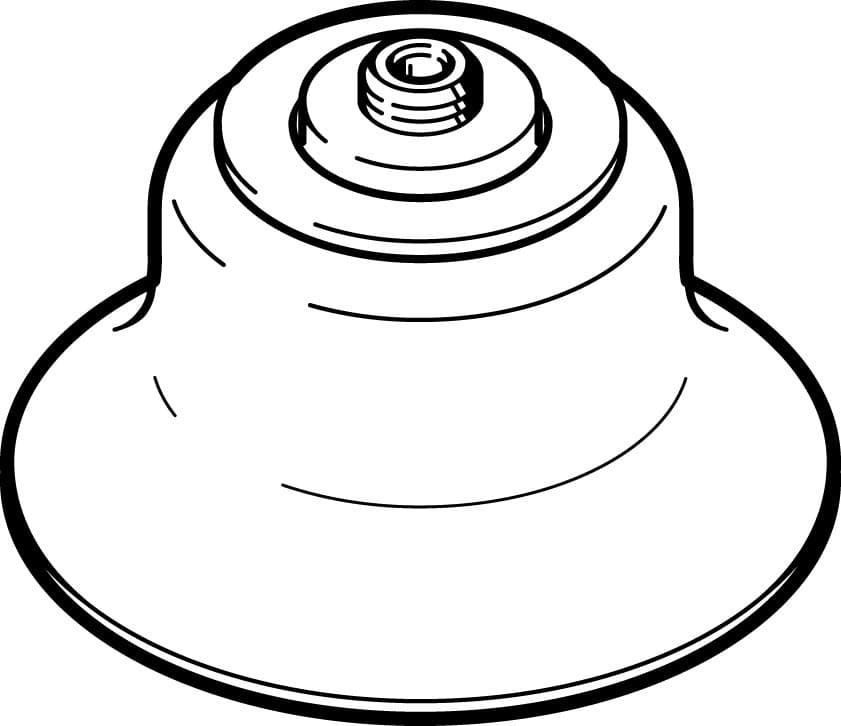

ess-60-ef
Product ID:6685
Updated: 2026/7/4
Key Features
- 1Operate up to 200°C for demanding high-temperature environments.
- 2Achieve CRC 1 corrosion resistance for enhanced durability.
- 3Meet food industry LABS (PWIS) conformity VDMA24364-A1-L.
- 4Hold securely with 162.5 N force at nominal pressure.
- 5Feature a 60 mm diameter and 19.77 cm³ volume.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 120mm | Nominal width | 6mm |
| Suction cup diameter | 60mm | Suction cup volume | 19.77cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 200°C |
| Holding force at nominal operating pressure | 162.5N | Lateral force at nominal operating pressure | 62.5N |
| Product weight | 48g | Type of mounting | Via vacuum connection |
| Vacuum connection | M10 | Color | Gray |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy, nickel-plated Steel, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | FPM |
| Manufacturer ID | 189357 |
Specifications may be subject to change without notice
