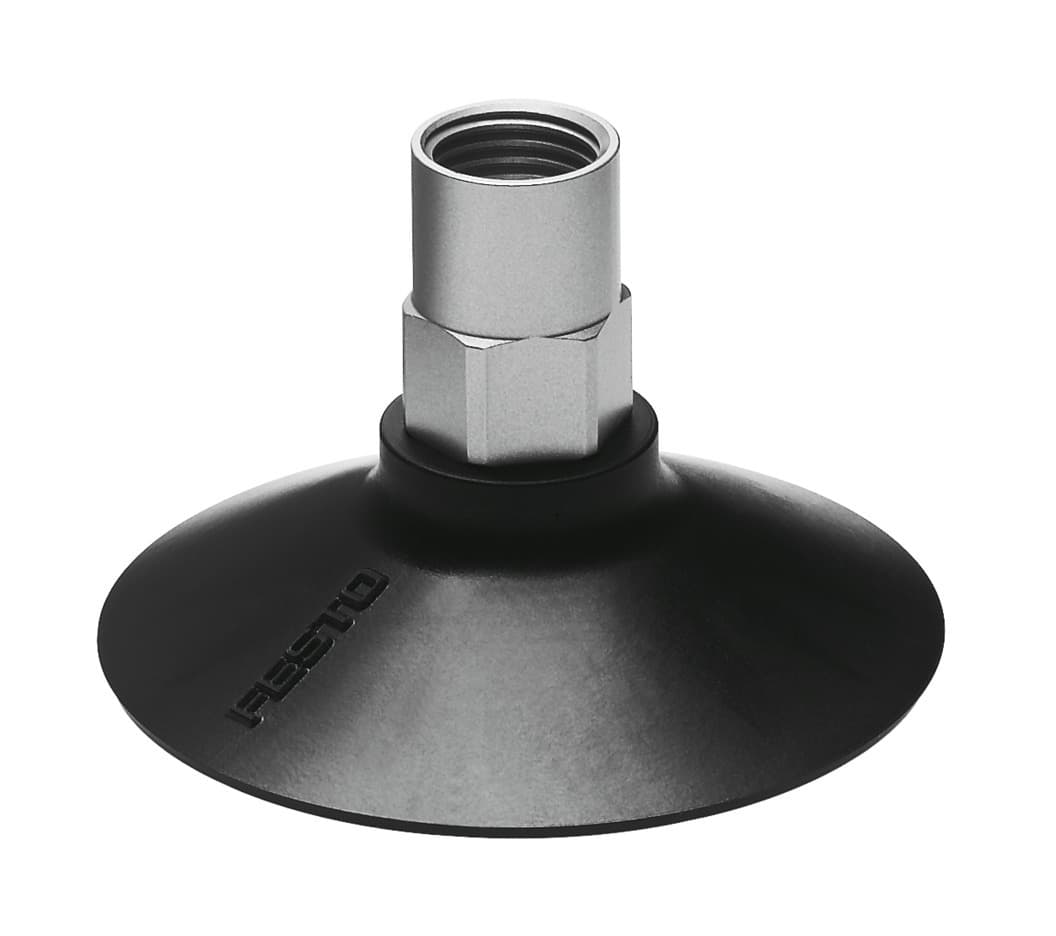

ess-60-gt-g1/4-i
Product ID:8906
Updated: 2026/4/3
Key Features
- 1Deliver a robust 134N holding force for reliable grip. 2、Enable easy interchangeability with a height compensator. 3、Construct from polyurethane and wrought aluminum alloy. 4、Include a support plate for simplified mounting. 5、Operate with atmospheric air from -0.95 to 0 bar.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 6mm | Min. workpiece radius | 75mm |
| Nominal width | 2.5mm | Suction cup diameter | 60mm |
| Suction cup volume | 11.3cm3 | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
| Holding force at nominal operating pressure | 134N | Lateral force at nominal operating pressure | 37N |
| Product weight | 19.5g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Reddish brown |
| Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 525981 |
Specifications may be subject to change without notice
