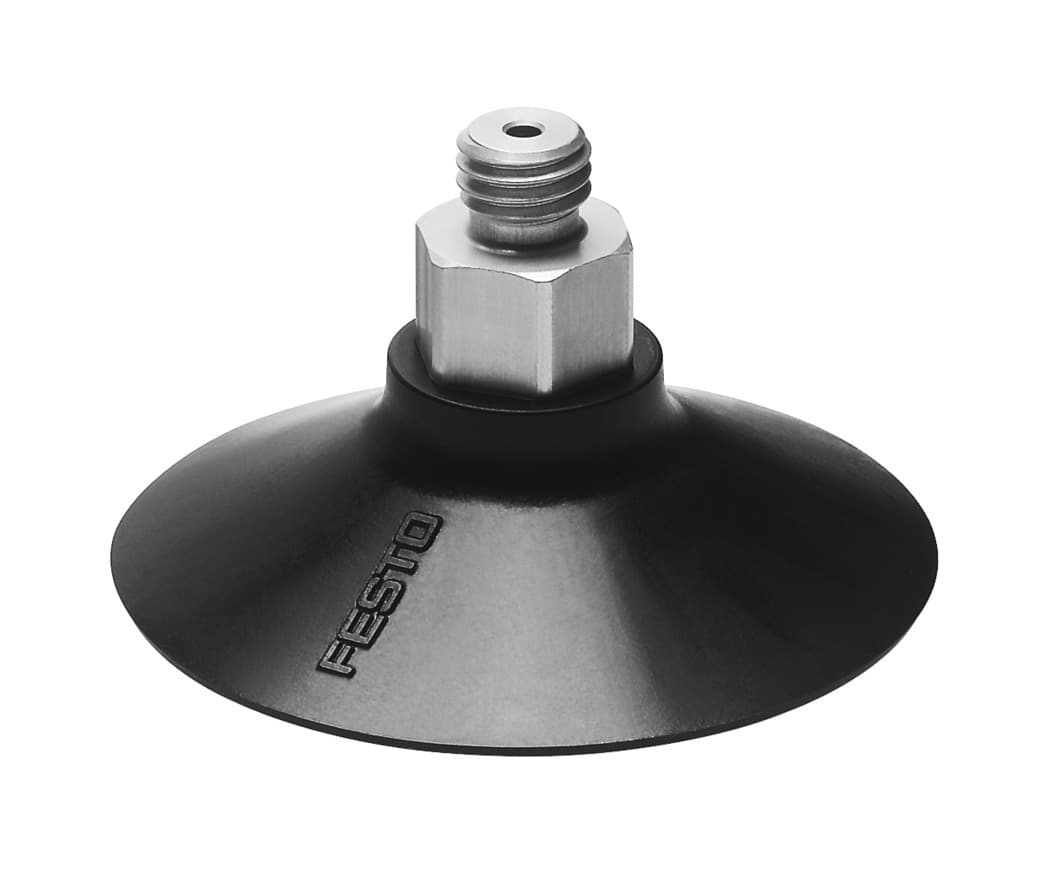

ess-60-gt-m10
Product ID:8905
Updated: 2026/4/3
Key Features
- 1Deliver a robust 134 N holding force for secure grip. 2、Adapt to any mounting position with height compensator. 3、Ensure durability with moderate corrosion resistance CRC 2. 4、Operate in a wide -10°C to 80°C temperature range. 5、Utilize Vulkollan® material for reliable sealing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 6mm | Min. workpiece radius | 75mm |
| Nominal width | 2.5mm | Suction cup diameter | 60mm |
| Suction cup volume | 11.3cm3 | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, deep | Operating pressure | -0.95bar 0bar |
| Nominal operating pressure | -0.7bar | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Holding force at nominal operating pressure | 134N |
| Lateral force at nominal operating pressure | 37N | Product weight | 20g |
| Type of mounting | Via vacuum connection | Vacuum connection | M10 |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Suction cup material | Vulkollan? | Manufacturer ID | 525980 |
Specifications may be subject to change without notice
