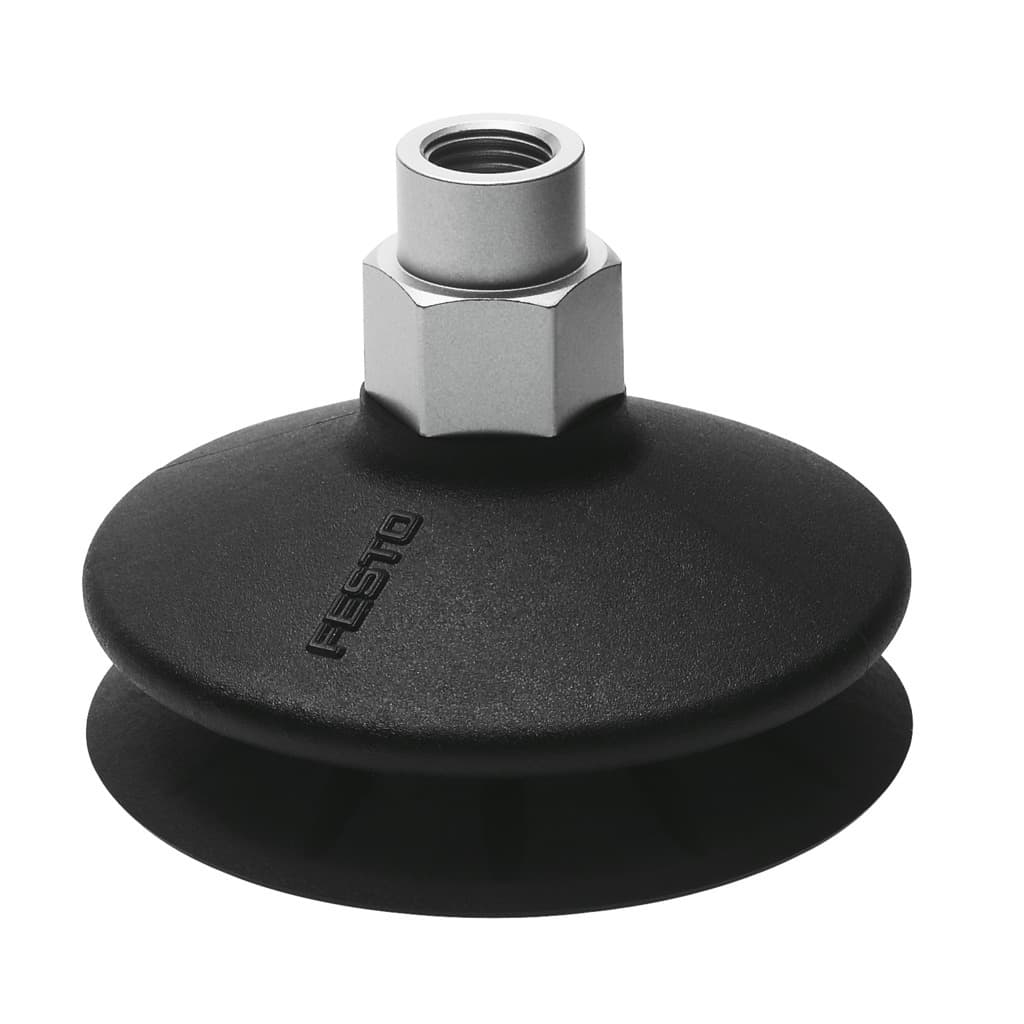

ess-80-bt-g1/4-i
Product ID:8923
Updated: 2026/7/4
Key Features
- 1Ensure precise positioning with a 10.5 mm height compensator.
- 2Swap components easily thanks to an interchangeable design.
- 3Achieve strong vacuum performance with 59,100 cm³ suction volume.
- 4Rely on durable polyurethane and aluminum alloy construction.
- 5Install the ESS-80-BT-G1/4-I in any position for flexibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 10.5mm | Min. workpiece radius | 100mm |
| Nominal width | 2.5mm | Suction cup diameter | 80mm |
| Suction cup volume | 59.1cm3 | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
| Holding force at nominal operating pressure | 237N | Lateral force at nominal operating pressure | 102N |
| Product weight | 87.5g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Reddish brown |
| Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 525998 |
Specifications may be subject to change without notice
