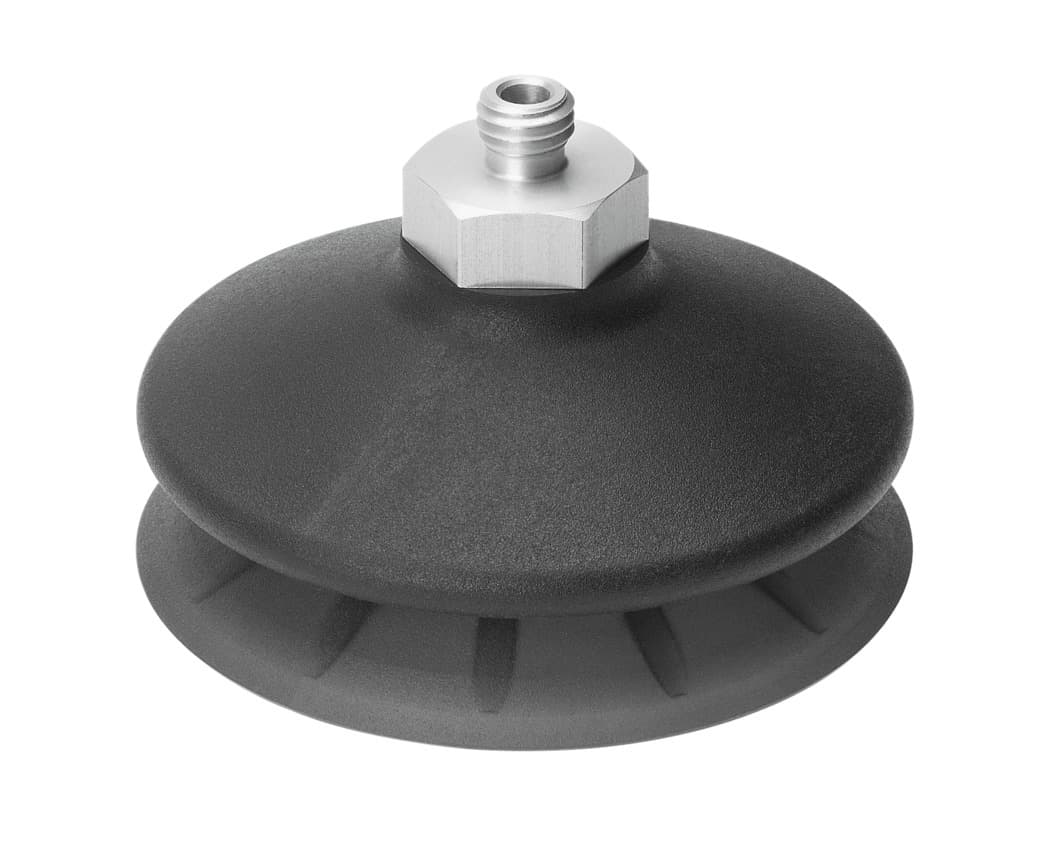

ess-80-bt-m10
Product ID:8922
Updated: 2026/7/4
Key Features
- 1Utilize high-performance polyurethane for durability in demanding environments.
- 2Adapt to various workpieces with a round bellows shape and 1.5 convolutions.
- 3Install quickly via the threaded M10 connection for secure mounting.
- 4Operate reliably in a wide temperature range from -10°C to 80°C.
- 5Ensure strong performance with a 237 N holding force and height compensator.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 10.5mm | Min. workpiece radius | 100mm |
| Nominal width | 2.5mm | Suction cup diameter | 80mm |
| Suction cup volume | 59.1cm3 | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -0.95bar 0bar |
| Nominal operating pressure | -0.7bar | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Holding force at nominal operating pressure | 237N |
| Lateral force at nominal operating pressure | 102N | Product weight | 84.5g |
| Type of mounting | Via vacuum connection | Vacuum connection | M10 |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Suction cup material | Vulkollan? | Manufacturer ID | 525997 |
Specifications may be subject to change without notice
