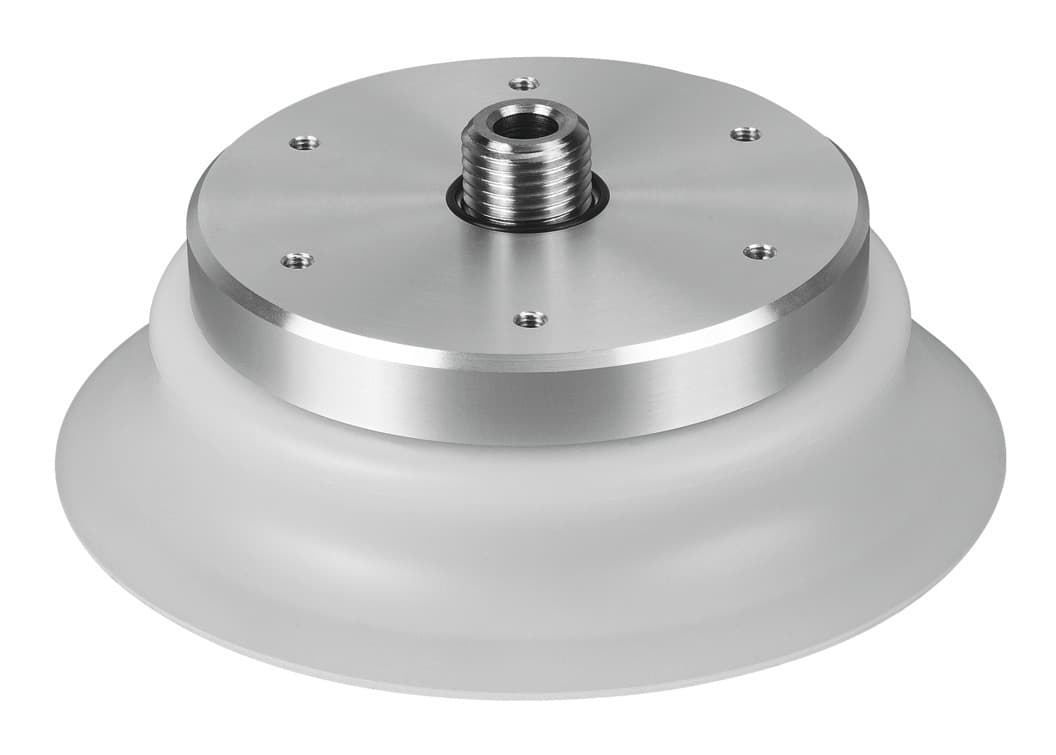

ess-80-es
Product ID:6688
Updated: 2026/7/4
Key Features
- 1Utilize durable VMQ silicone for extended operational life.
- 2Mount easily via M10 vacuum port connection.
- 3Comply with food safety standards for hygienic processing.
- 4Operate effectively from -95 kPa to 0 kPa.
- 5Feature an 80mm diameter, extra-deep suction cup.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 160mm | Nominal width | 6mm |
| Suction cup diameter | 80mm | Suction cup volume | 51.61cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
| Holding force at nominal operating pressure | 275N | Lateral force at nominal operating pressure | 107.5N |
| Product weight | 141g | Type of mounting | Via vacuum connection |
| Vacuum connection | M10 | Color | Transparent |
| Shore hardness | 50 +/- 5 | Material of screwed plug | POM Steel, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 189360 |
Specifications may be subject to change without notice
