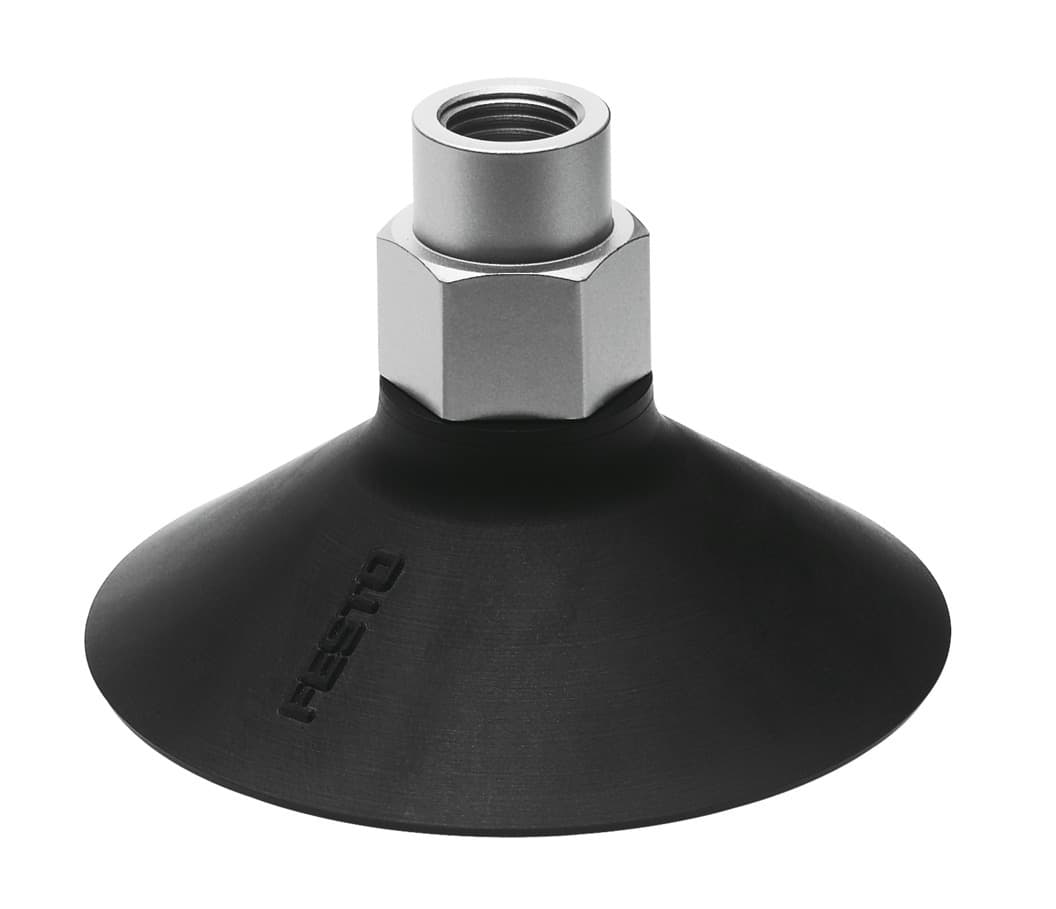

ess-80-gt-g1/4-i
Product ID:8909
Updated: 2026/4/3
Key Features
- 1Feature an 80 mm diameter for versatile vacuum handling tasks. 2、Operate within a -0.95 to 0 bar pressure range for consistent performance. 3、Integrate easily via the G1/4 vacuum connection with Festo systems. 4、Ensure stable operation with the built-in height compensator. 5、Belong to the durable ESS series for demanding industrial applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 7.5mm | Min. workpiece radius | 100mm |
| Nominal width | 5.5mm | Suction cup diameter | 80mm |
| Suction cup volume | 28.6cm3 | Mounting position | Any |
| Structural design | Round, bell-shaped | Symbol | 00991485 |
| Suction cup shape | Round, deep | Operating pressure | -0.95bar 0bar |
| Nominal operating pressure | -0.7bar | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 245N |
| Holding force at nominal operating pressure | 245N | Max. tightening torque for mounting thread | 11Nm |
| Lateral force at nominal operating pressure | 99N | Product weight | 61g |
| Type of mounting | Via vacuum connection | Vacuum connection | G1/4 |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Suction cup material | Vulkollan? | Manufacturer ID | 525984 |
Specifications may be subject to change without notice
