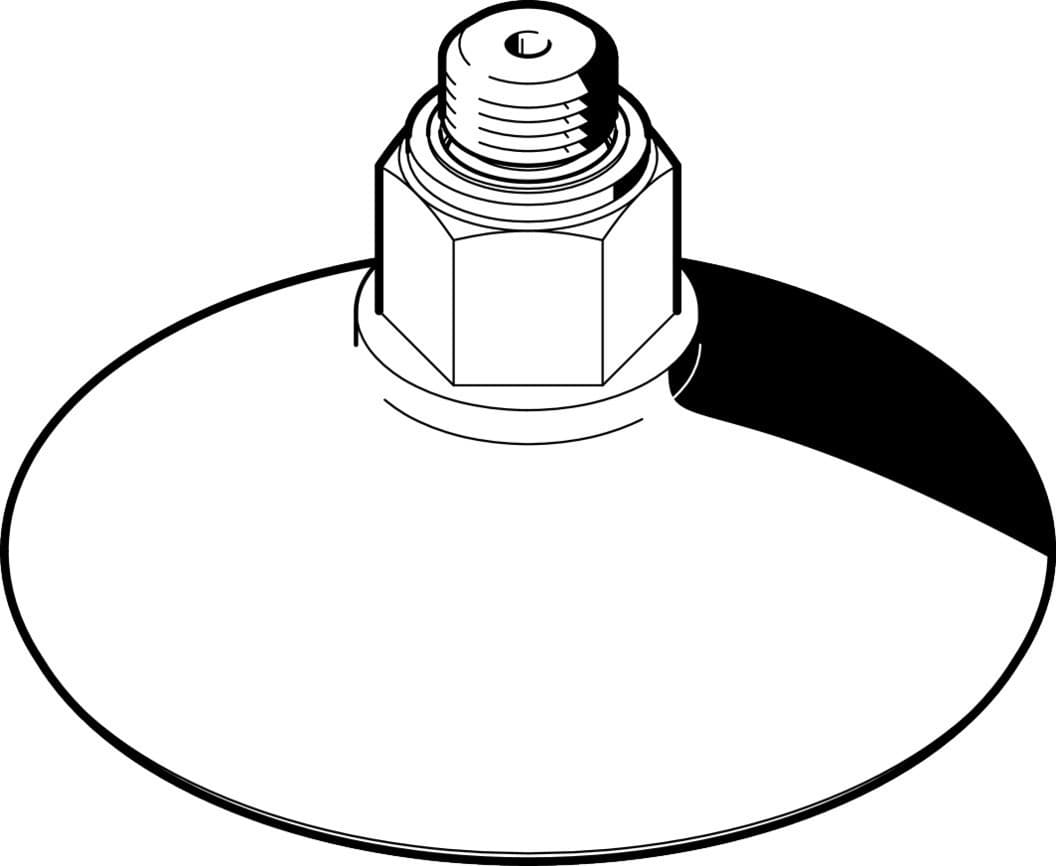

ess-80-gt-m10
Product ID:8908
Updated: 2026/7/4
Key Features
- 1Secure a 245N holding force for reliable industrial gripping.
- 2Construct the cup from durable Vulkollan material for extended lifespan.
- 3Feature an 80mm bell-shaped design for optimal surface contact.
- 4Integrate an M10 vacuum connection for standard compatibility.
- 5Receive a 2-year warranty for assured long-term performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 7.5mm | Min. workpiece radius | 100mm |
| Nominal width | 5.5mm | Suction cup diameter | 80mm |
| Suction cup volume | 28.6cm3 | Mounting position | Any |
| Structural design | Round, bell-shaped | Symbol | 00991485 |
| Classification of suction cup holder | Size 5 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
| Breakaway force at 70% vacuum | 245N | Holding force at nominal operating pressure | 245N |
| Max. tightening torque for mounting thread | 12Nm | Lateral force at nominal operating pressure | 99N |
| Product weight | 28g | Type of mounting | Via vacuum connection |
| Vacuum connection | M10 | Color | Reddish brown |
| Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 525983 |
Specifications may be subject to change without notice
