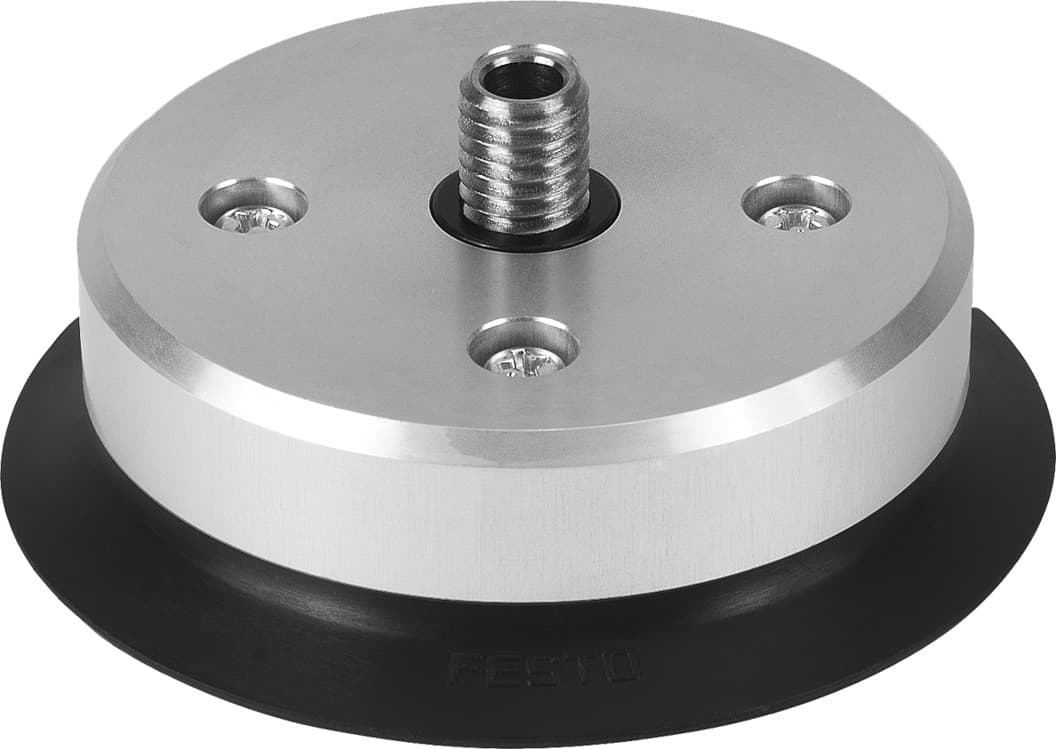

ess-80-sn
Product ID:6646
Updated: 2026/4/3
Key Features
- 1Deliver 309.7 N holding force for reliable gripping. 2、Construct with NBR and nickel-plated steel for durability. 3、Mount via top or optional positions with M10 connection. 4、Comply with VDMA24364-A1-L for food industry safety. 5、Operate in -10°C to 70°C ambient temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 400mm | Nominal width | 6mm |
| Suction cup diameter | 80mm | Suction cup volume | 19.312cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
| Holding force at nominal operating pressure | 309.7N | Lateral force at nominal operating pressure | 315N |
| Product weight | 133g | Type of mounting | Via vacuum connection |
| Vacuum connection | M10 | Color | Black |
| Shore hardness | 60 +/- 5 | Material of screwed plug | POM Steel, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | NBR |
| Manufacturer ID | 189318 |
Specifications may be subject to change without notice
