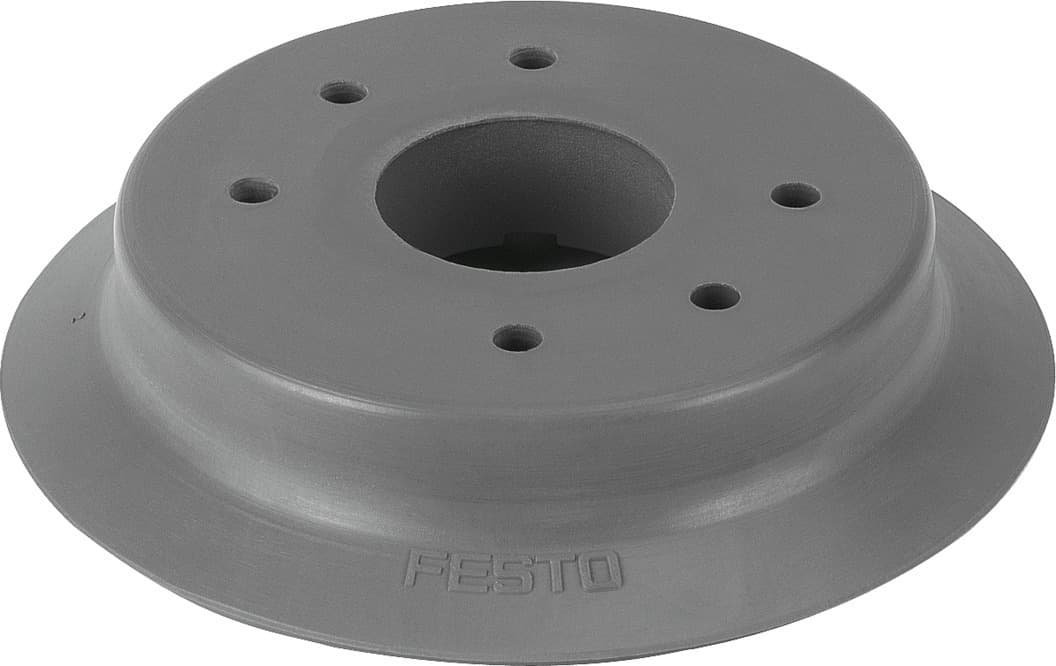

esv-100-ef
Product ID:6963
Updated: 2026/4/3
Key Features
- 1Feature a 100mm diameter, extra-deep design for robust vacuum performance. 2、Provide 440.8 N holding force for exceptional grip and stability. 3、Construct from durable FPM material for high chemical resistance. 4、Design with a top connection for versatile and easy mounting. 5、Handle workpieces with a minimum 200mm radius for versatile use.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 200mm | Suction cup diameter | 100mm |
| Suction cup volume | 79.812cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 440.8N |
| Product weight | 65g | Color | Gray |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | FPM | Manufacturer ID | 191050 |
Specifications may be subject to change without notice
