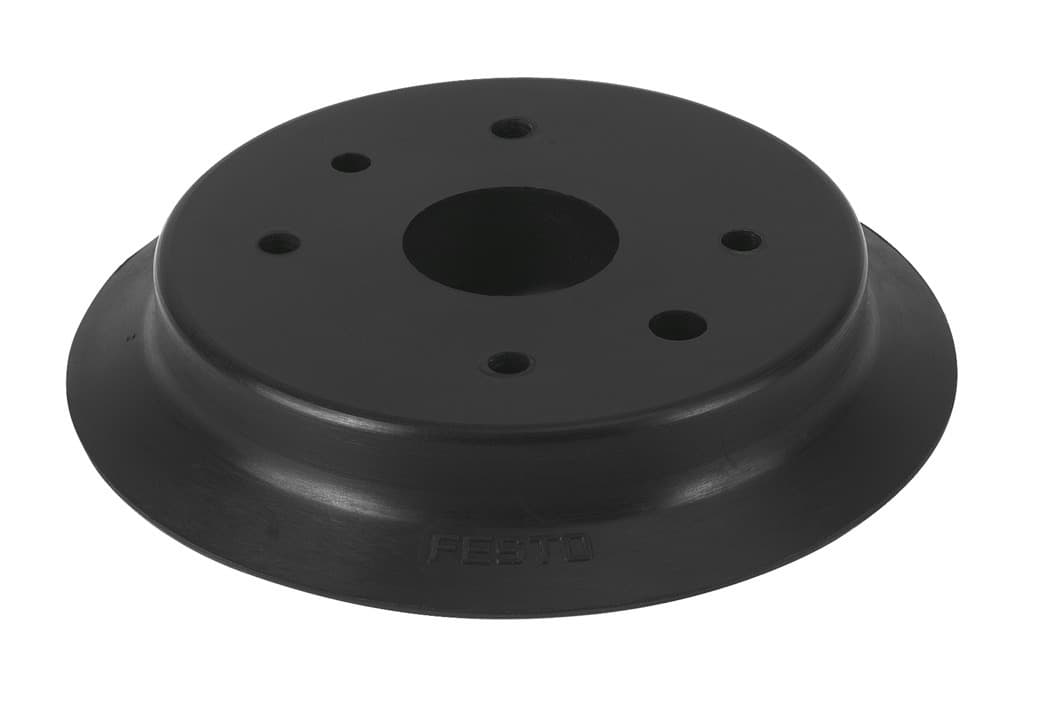

esv-100-en
Product ID:6960
Updated: 2026/4/3
Key Features
- 1Grip workpieces securely with a 100 mm diameter and 200 mm minimum radius. 2、Operate reliably in extreme temperatures from -30°C to 180°C. 3、Ensure durability and chemical resistance with RoHS-compliant NBR material. 4、Achieve 440.8 N holding force at nominal pressure for robust handling. 5、Simplify inspection and mounting with a transparent, top-mount design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 200mm | Suction cup diameter | 100mm |
| Suction cup volume | 79.812cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 440.8N |
| Product weight | 65g | Color | Black |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 191047 |
Specifications may be subject to change without notice
