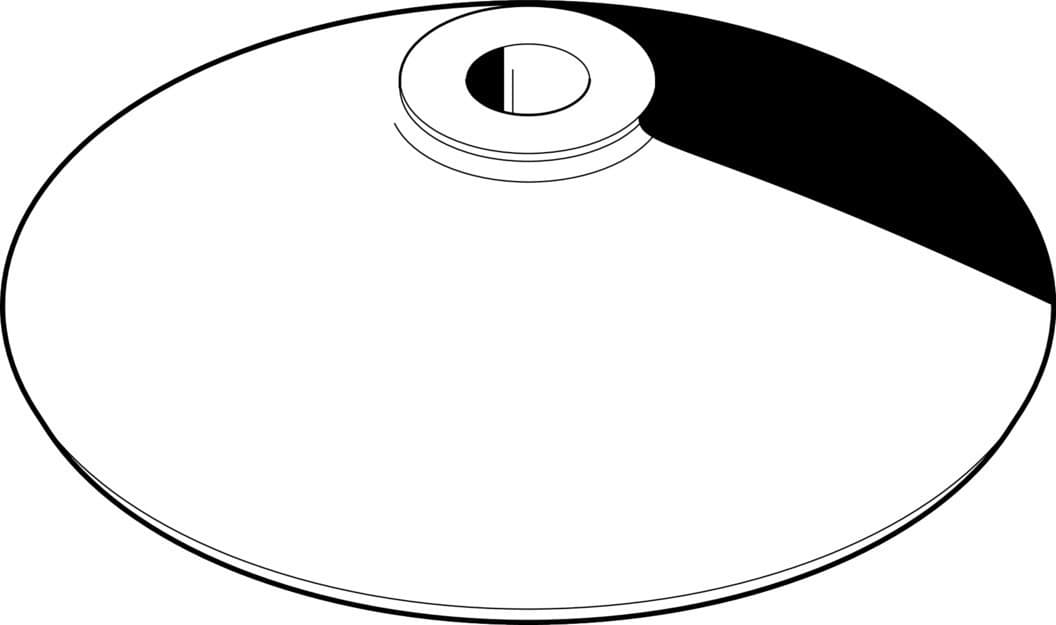

esv-100-gt
Product ID:8930
Updated: 2026/4/3
Key Features
- 1Engineer precise control for reliable operation in diverse industrial applications. 2、Achieve fast switching times and high flow rates for quick system response. 3、Utilize robust construction and durable materials for long-lasting performance. 4、Integrate easily with a range of interfaces and flexible mounting options. 5、Handle a wide spectrum of fluids and pressures for versatile process automation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 9mm | Min. workpiece radius | 135mm |
| Suction cup diameter | 100mm | Suction cup volume | 53.9cm3 |
| Mounting position | Any | Structural design | Round, bell-shaped |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 375N |
| Holding force at nominal operating pressure | 100N | Lateral force at nominal operating pressure | 183N |
| Product weight | 58.9g | Type of mounting | Via vacuum connection |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 526005 |
Specifications may be subject to change without notice
