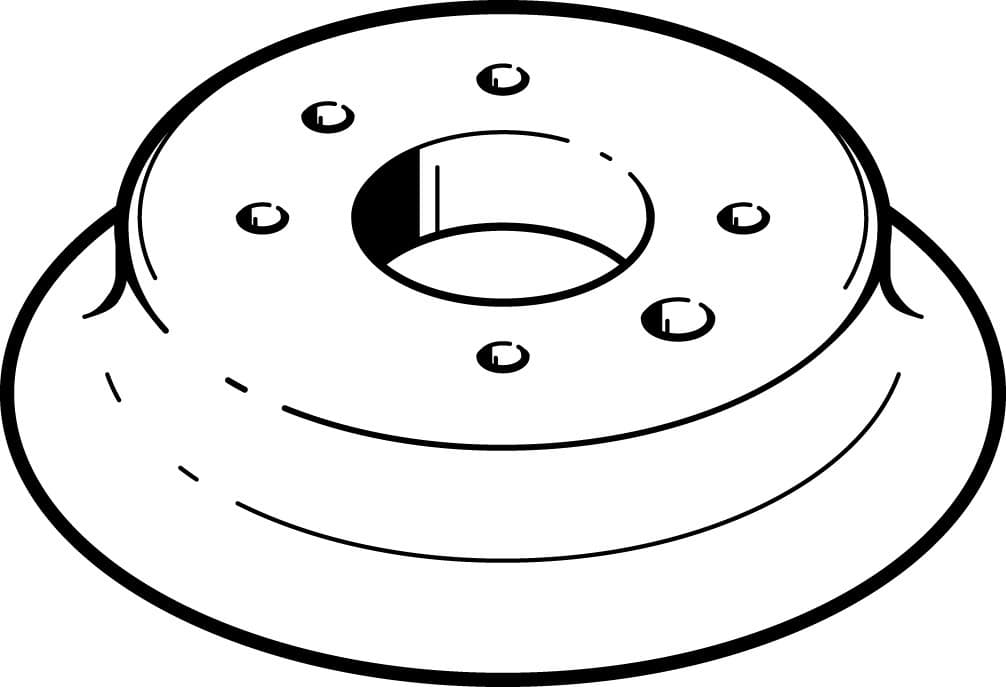

esv-100-ss
Product ID:6926
Updated: 2026/4/3
Key Features
- 1Deliver 503.6 N holding force for robust suction performance. 2、Install in any position for flexible system integration. 3、Operate across -30°C to 180°C for diverse environments. 4、Feature 29,779 cm³ suction volume for reliable gripping. 5、Design as a replaceable wearing part to reduce downtime.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 460mm | Suction cup diameter | 100mm |
| Suction cup volume | 29.779cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 503.6N |
| Product weight | 59g | Color | Transparent |
| Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 191009 |
Specifications may be subject to change without notice
