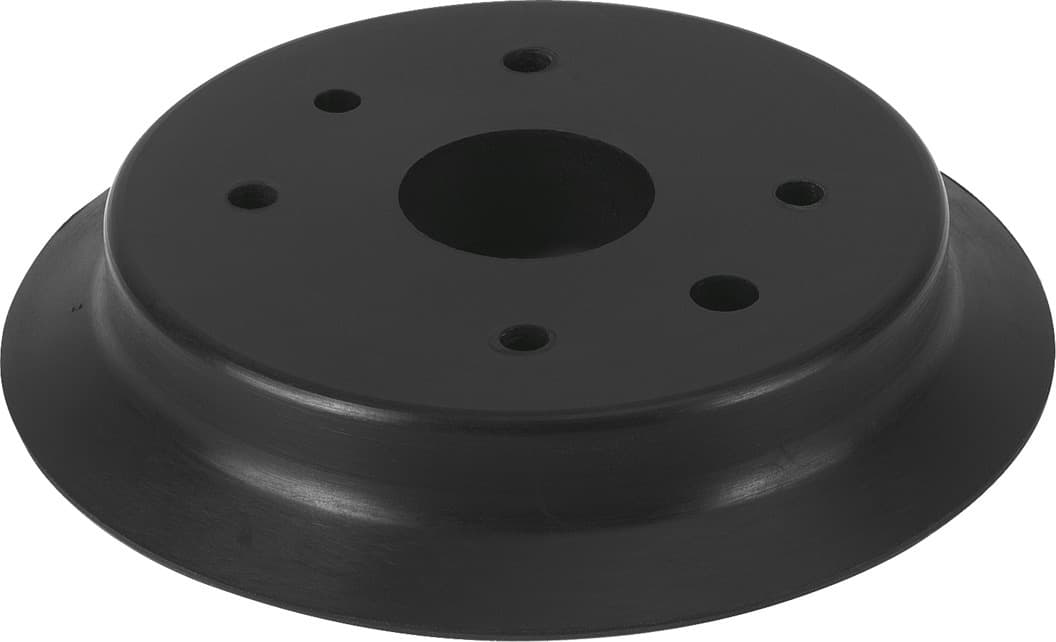

esv-150-sn
Product ID:6928
Updated: 2026/4/3
Key Features
- 1Deliver a robust 900N holding force for secure workpiece handling. 2、Feature a 150mm flat NBR pad for ergonomic and precise operation. 3、Enable easy replacement as a wearing part to minimize downtime. 4、Support versatile mounting in any assembly position for flexible integration. 5、Offer a food-safe option suitable for clean industry applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 480mm | Suction cup diameter | 150mm |
| Suction cup volume | 173.826cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 900N |
| Product weight | 361g | Color | Black |
| Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 191011 |
Specifications may be subject to change without notice
