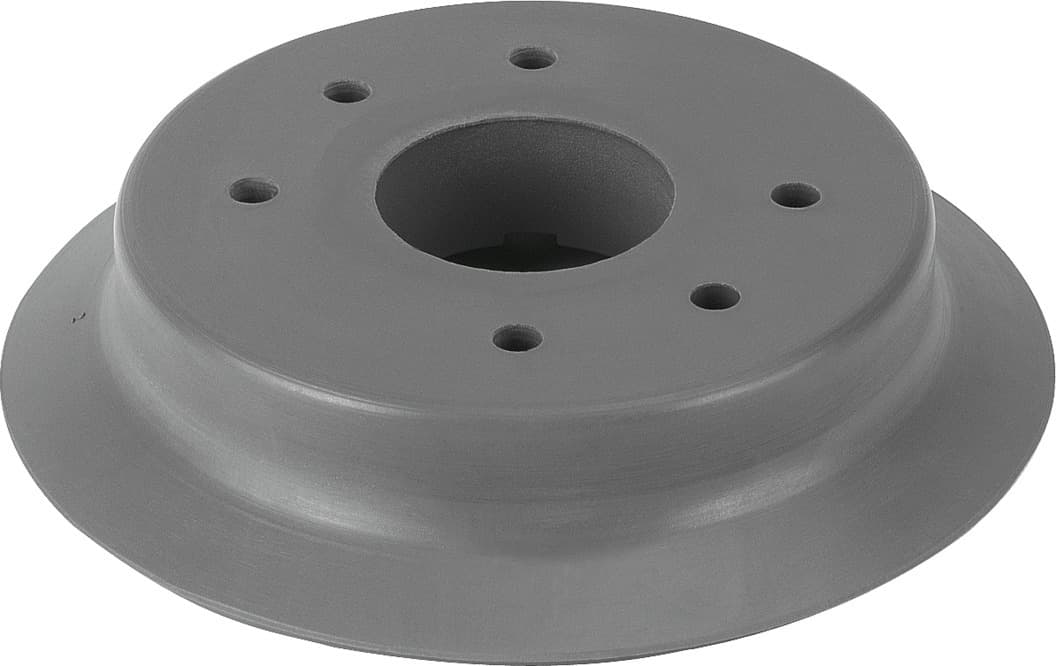

esv-200-sf
Product ID:6935
Updated: 2026/4/3
Key Features
- 1Secure grip on workpieces with a 200 mm diameter round, flat shape. 2、Operate reliably across a wide -10°C to 200°C temperature range. 3、Deliver robust 1610 N holding force at -0.07 MPa operating pressure. 4、Resist chemicals and abrasion with durable, RoHS-compliant FPM material. 5、Ensure food industry safety with LABS (PWIS) conformity standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 680mm | Suction cup diameter | 200mm |
| Suction cup volume | 245.454cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 1610N |
| Product weight | 840g | Color | Gray |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | FPM | Manufacturer ID | 191018 |
Specifications may be subject to change without notice
